Video Switcher


Our newest production switcher, leveraging the creative power of the HANABI series.

The HVS-490 switcher offers flexible expansion, opening the door to even more affordable 4K production. Exclusive MELite™ technology extends the switcher’s 2 M/Es to offer 6 M/E performance.*1 Expand your switching capabilities even more by assigning FLEXaKEY™ or feature rich 2.5D DVE, for compositing with up to 12 keyers. Take advantage of this truly broad range of switching in live production. Furthermore, the HVS-490 supports NDI® using the optional HVS-NIF*2 card. The HVS-NIF*2 serves as a video/audio transceiver and creates a system capable of handling IP and baseband signals.

*1 Using an optional HVS-49IO card. In 4K mode, 1 M/E + 1 MELite is available.
*2 To be supported. 4K is not available in HVS-NIF. For details, contact your FOR-A dealer.
NDI is a registered trademark of Vizrt.

NDI connectivity
HVS-NIF NDI I/F board for the HVS-490

Have you ever encountered any difficulties in live production system? Then the HVS-490 + HVS-NIF* might make you to make it more clear and easy!
* To be supported. 4K is not available in HVS-NIF. For details, contact your FOR-A dealer.

HVS-NIF Features

  • - Supports NDI High Bandwidth and NDI HX input and output.
    - Supports 3G/HD-SDI format, with 4 MoIP inputs*1/2 MoIP outputs per card.
    - Supports alpha channel receiving*2.
    - Add up to 2 cards to HVS-490*3, 3 to HVS-190S or 2 to HVS-190I.
    - Frame sync for all inputs.
    - Proc amp functionality: adjust source video luminance, saturation or hue.
    - Remote camera operation.
    - Dual Gigabit Ethernet ports.
    - Hardware-based codec processing for peace of mind when building MoIP systems.
    *1 NDI High Bandwidth: up to 3 inputs for 1080/59.94p or 50p signals.
    *2 NDI High Bandwidth only.
    *3 HVS-NIF is not support SD and 4K formats.

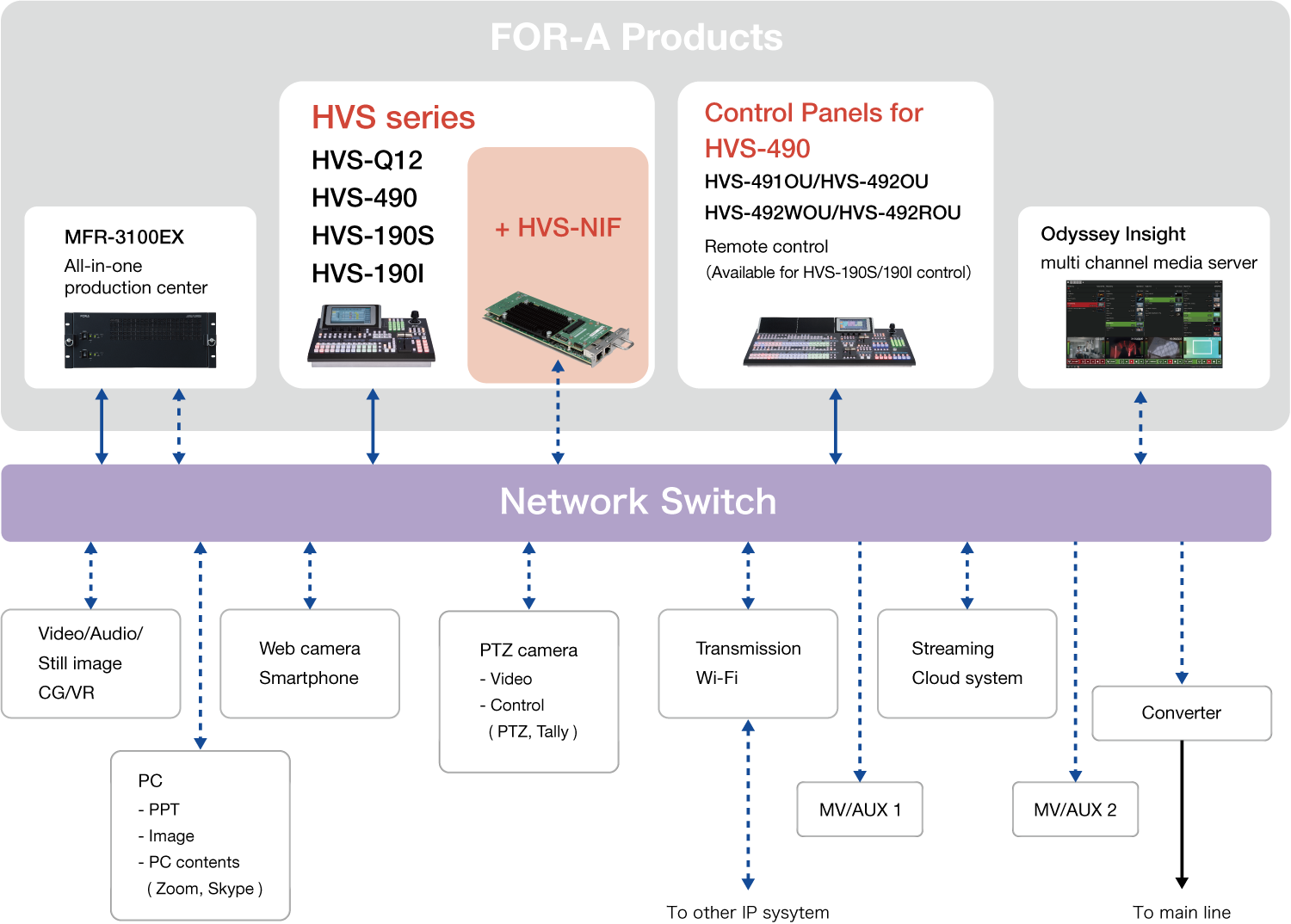

Live Solutions with NDI

For more information on each product, please visit the respective product page.


  • Remote Control

    Set up HVS-490* at venues to manage events remotely from a control panel at your base of operations.
    * HVS-490 / HVS-492OU is shown in the following example.

  • PTZ Camera Control

    Control multiple PTZ cameras—pan, tilt, or zoom, activate tally lights, set or apply presets, or use stored macros for video switching coordinated by bus buttons. Connect to up to 16 cameras.

  • Support to Build SDI/NDI Mixed System

    Easily add devices or computer content compatible with NDI output (such as videos, videoconferencing streams, presentations, or computer graphics) to SDI systems. Reliable baseband switchers can also be added to your NDI system.

  • SDI/IP Conversion and Routing

    Add PTZ camera output, computer content, or other sources to SDI equipment, and freely convert between SDI and IP while routing video/audio from a single switcher to multiple devices. SDI/IP sources and output can be arranged side by side with the built-in multi-viewer for monitoring over IP.

  • 2-way Transfer of Many Signals Using only LAN Cables

    Two-way transfer with multiple video, audio, control, or tally systems using only one LAN cable.

  • Excels in Many Applications

    Beneficial for broadcasting, live production, corporate events, or other applications, regardless of the market.


Examples of Application

Mixed SDI/NDI Production
Video feeds with both on-site and remote performers can be sent to the switcher along with computer content. In addition to the PGM bus, provides an ample selection of Aux buses (12) that can be used to send any video back to remote talent.

SDI/IP Simulcasts
Simultaneously with SDI playout, connect to streaming sites via an IP stream, enabling mixed or coordinated broadcasts of both sources.



MELite expands the capabilities of AUX transitions. With an AUX bus, able to preview transitions before executing them, and enjoy the same control over AUX output as for PGM or PST. Two MELites are provided, and an optional HVS-49IO card brings the total to four. Assigning FLEXaKEY to an MELite expands the system adding the equivalent of two M/E buses to the standard two Full ME’s, brings the total available to four. 4–6 M/E performance is possible in a 2 M/E switcher.

  • Preview output from an AUX bus when applying transitions (cut, mix, or wipe) or keying. This background breaking technology makes sure your production is ready for virtually any request.
  • For greater impact and more sophisticated switching, MELite can be assigned before M/E buses.
  • Any ME can be assigned to multiple on stage monitors for independent background transitions and graphics transitions all from the same control panel.


Special FLEXaKEY keyers are designed for flexible reassignment. The four FLEXaKEYs provided operate separately from standard keyers of the full M/E buses. Easy keying of four different FLEXaKEYs in any AUX bus is another highlight enabling impressive performances beyond the reach of conventional switchers.

  • Quad FLEXaKEY system can be freely assigned to M/E or AUX buses. Combine up to eight keyers for an M/E bus (4 keyers + 4 FLEXaKEYs).
  • P-in-P display is possible using an AUX bus, and assigning FLEXaKEY to an MELite enables use as an upstream key.
  • FLEXaKEY can also be applied to create a multi-monitor video wall with a single HVS-490.


Choose from cut, mix, or wipe transitions. In addition to 100 wipe patterns, the switcher offers 16 useful 2.5D DVE wipes such as rotate, perspective and reposition. Also rich effects including mosaic, posterization, pseudo color and defocus are also provided.

Extensive input/output

16 video inputs are provided, expandable to 40, along with 9 video outputs (including 1 HDMI port) that are expandable to 22 (including 2 HDMI ports). For 4K*, 8 to 10 inputs and 6 to 7 (including 2 HDMI ports) outputs (expandable to 7) are provided. See “Options” for details on expansion cards.
* HVS-49IO and HVS-49EXP4K are required for supporting 4K.

Standard multi viewer output

HVS-490 provides three displays of multi viewer output, each supporting up to 16-split display. 39 screen layouts each are available. This provides an optimal monitoring environment for both the main operator and other users. 4K output is supported via HDMI 2.0 Level B. Via HDMI outputs, monitor four images on one screen. Using 3 multi viewer outputs and PGM output, up to 49 windows are displayed.

AES digital audio I/O (optional*)

Supports 4 AES (8 channels) of balanced or unbalanced audio input and output. Able to demultiplex AES audio from video/clip input and multiplex AES audio into video output. Use an internal sampling rate converter to sync audio input to the system.
* With HVS-49AES expansion card.

2SI/SQD 4K mode (optional*)

Ready for 1080/59.94p/50p/29.97p/25p formats, the switcher processes 4K video from the quad 3G-SDI output of 4K cameras in 2SI (2-sample interleave) or SQD (square division) format.
* With HVS-49EXP4K software and HVS-49IO card.

Example of 4K system configuration

The HVS-490 was designed with future 4K upgrading in mind. By adding optional expansion cards provides up to 10 4K inputs and 7 outputs. What’s more, unique use of AUX buses enables a 4K switcher to have the equivalent of 1–1.5 M/E features.

Live staging

The HVS-490 has an incredibly powerful feature set making it ideal for live staging and event applications where systems must be set up quickly and temporarily. Event memory and macro functions make it easier to prepare for performances. MELite eliminates the need to have several switchers ready for multi-monitor staging, greatly reducing the equipment required. It’s essential to keep production simple and easy, preventing mistakes and helping operators focus on staging.At sites where PTZ cameras are used, it is possible to operate from a switcher by installing HVS-NIF and supporting NDI. Enables operation with fewer people.

Mobile OB and Up-Link production trucks

The HVS-490 with its robust feature set is perfect for small mobile video production or Up-Link in which space is limited. The HVS-490 switcher offers a rich feature set perfect for live or recorded production. With integrated frame synchronizers and multi viewer, the HVS-490 can reduce the amount of equipment required in the truck. Using multiple control FOR-A control panels, the system can also provide an environment for several operators each in charge of separate tasks for example one for the main event and a second for a web cut of the same event.
