Remote Control Panel

MFR-RU Series

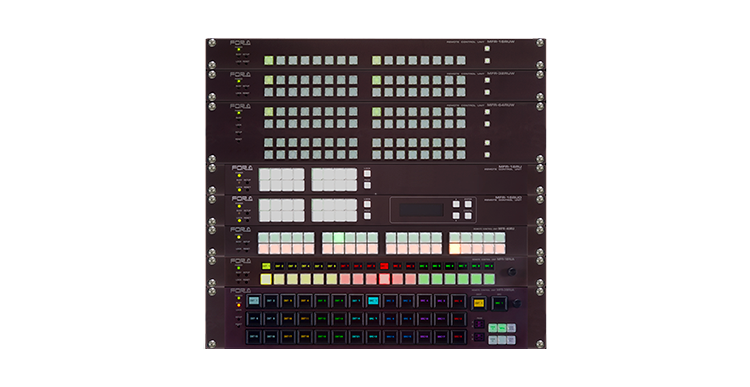

We offer several types of remote control unit for MFR series to suit your application. The number of units that can be connected is a maximum of 128, including the main unit. This lets you build a flexible control environment by the way you partition the matrix and make operation level settings.

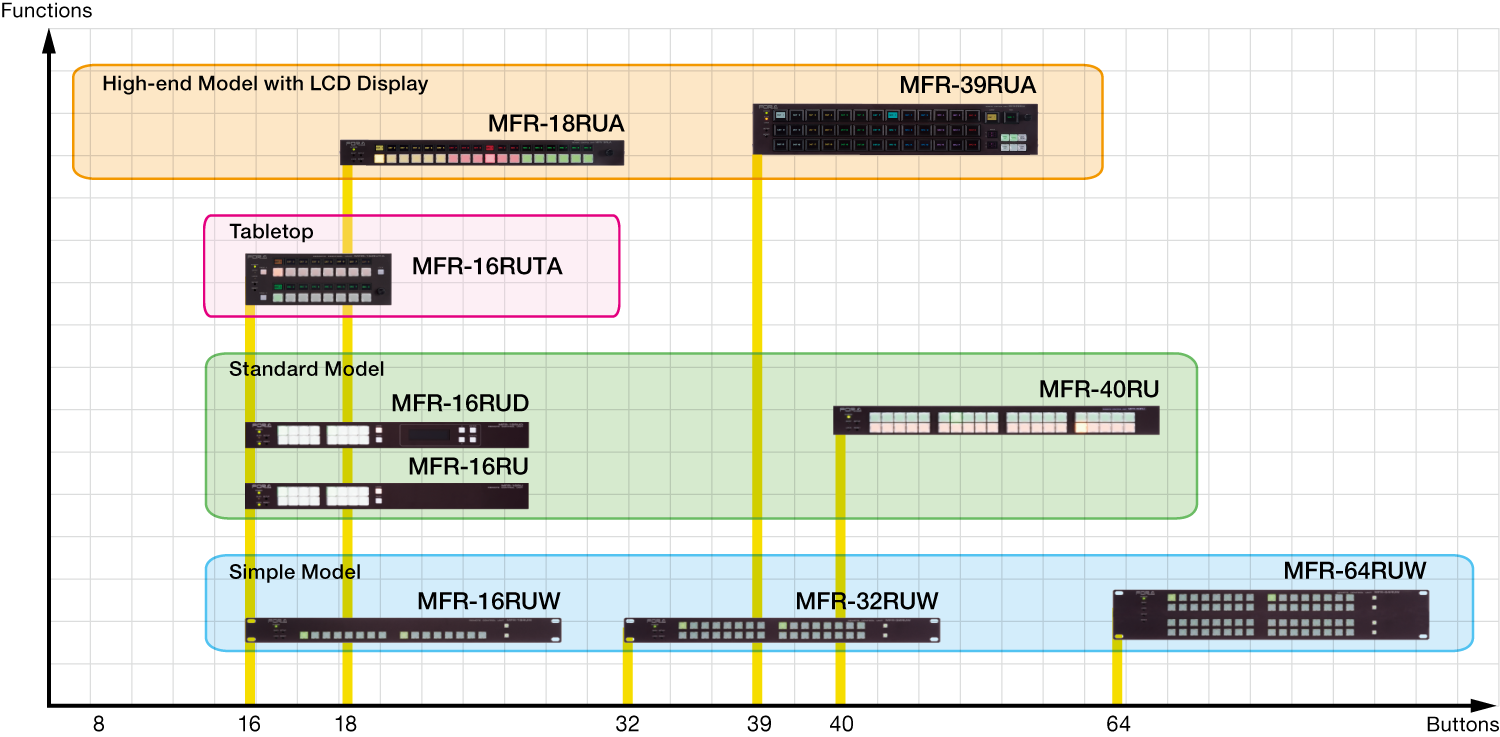

MFR-RU Series Lineup

Basic Model

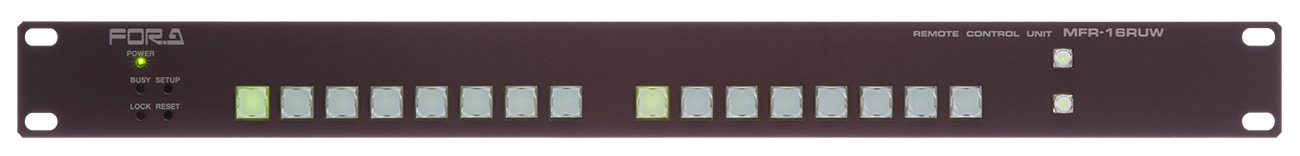

MFR-16RUW

  • 1 U compact size
  • 16 buttons (Single color: G)
  • Any function can be assigned to the 16 buttons

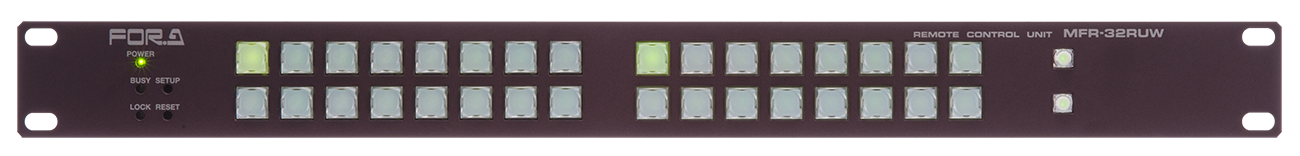

MFR-32RUW

  • 1 U compact size
  • 32 buttons (Single color: G)
  • Any function can be assigned to the 32 buttons

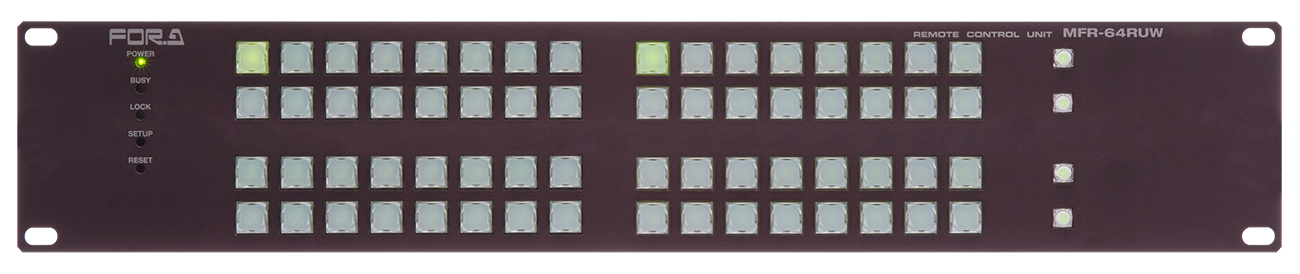

MFR-64RUW

  • 2 U size
  • 64 buttons (Single color: G)
  • Any function can be assigned to the 64 buttons

Standard Model

MFR-16RU

  • 1 U compact size
  • 16 buttons (Single color: G)
  • Any function can be assigned to the 16 buttons

MFR-16RUD

  • 1 U compact size
  • 16 buttons (Single color: G)
  • Any function can be assigned to the 16 buttons
  • Equipped with a status and setting menu display

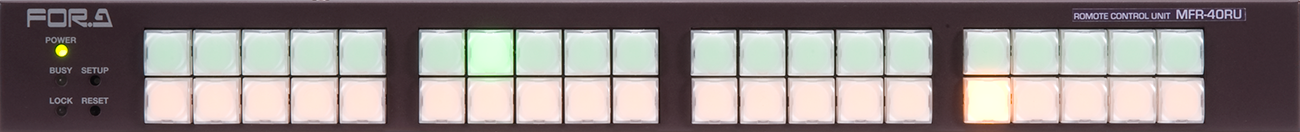

MFR-40RU

  • 1 U compact size
  • 40 buttons (3 colors: R, G, Or)
  • Any function can be assigned to any button
  • Redundant power supply (AC adapter)

Tabletop Model

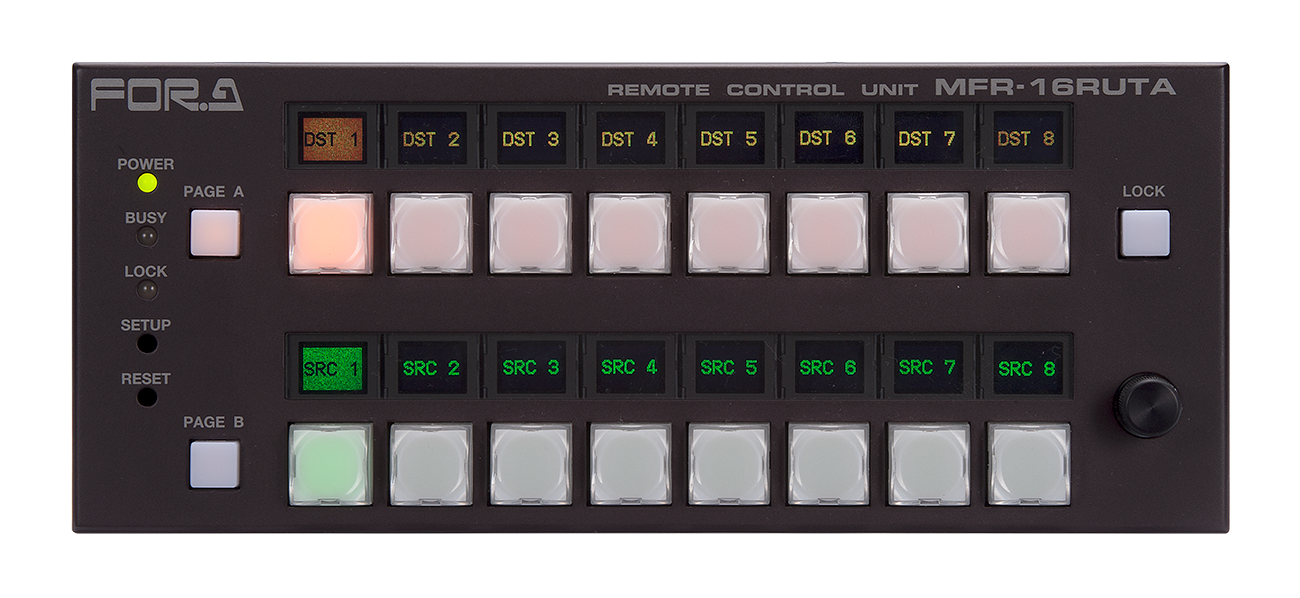

MFR-16RUTA

  • 2U half tabletop size
  • 16 buttons (3 colors: R, G, Or)
  • Equipped with LCD display that can show source name and assigned functions for each button (7 colors: R, G, Ye, B, W, Cy, Mg)
  • Any function can be assigned to the 16 buttons

High-end Model with Menu Display

MFR-8RUA

  • 1U half compact size
  • 8 buttons (3 colors: R, G, B)
  • Equipped with OLED display that can show source name and assigned functions for each button (7 colors: R, G, Ye, B, W, Cy, Mg)
  • Any function can be assigned to any button

MFR-18RUA

  • 1U compact size
  • 18 buttons (3 colors: R, G, B)
  • Equipped with OLED display that can show source name and assigned functions for each button (7 colors: R, G, Ye, B, W, Cy, Mg)
  • Any function can be assigned to any button
  • Redundant power supply (AC adapter)

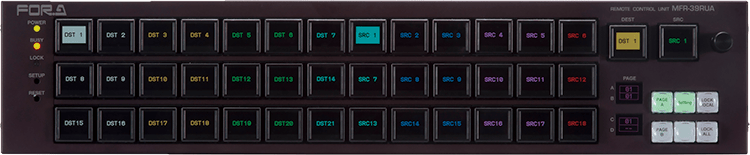

MFR-39RUA

  • 2 U size
  • 39 buttons: 13 button x 3-row. Buttons with OLED display that can show source names or assigned functions (7 colors: R, G, Ye, B, W, Cy, Mg)
  • Apart from the main buttons, there are 6 function buttons that can be freely assigned (3 colors: R, G, Or)
  • Equipped with display showing information of current sources, destinations, and pages
  • Ideal as a main control unit covering the entire crosspoint set-up
  • Redundant power supply (AC adapter)
