All-in-One Production Center

MFR-3100EX

Routing switchers with flexible configurations that can expand their applications with the addition of various functions.

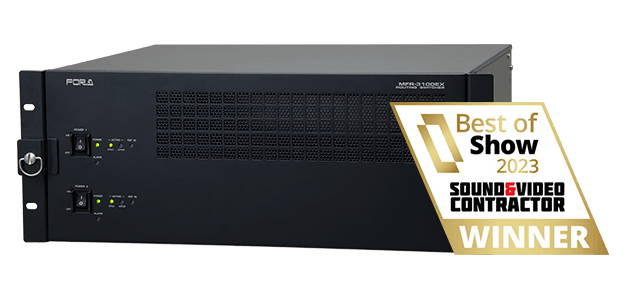

A 4RU-sized multi-format routing switcher that supports 3G/HD/SD-SDI, DVB-ASI, MADI, AES/EBU, and analog audio. A matrix configuration with up to 64 inputs and 72 outputs is available. Furthermore, multiple units can be linked to expand the matrix and provide redundancy, making it a flexible core product for system integration. The optional MFR-31VP can add functions such as a 1M/E video switcher, which supports a NDI®* input/output, Dante®* audio, multi viewer, recording/playback, streaming, storage, and DSK. By fulfilling multiple roles in a single unit, it contributes to the simplification of system operations. It also significantly reduces the number of equipment, labor and time required for wiring/setup, and troubleshooting. This product is not only suitable for permanent system operations, but it also excels in temporary system deployments for events and live broadcasts. Its compact size also makes it ideal for operation in limited spaces, such as OB vans.
*In addition to the MFR-31VP, the MFR-31VPS is also required for NDI and the MFR-31DNT for Dante audio integration.
NDI is a registered trademark of Vizrt NDI AB. Dante is a registered trademarks of Audinate Pty Ltd.

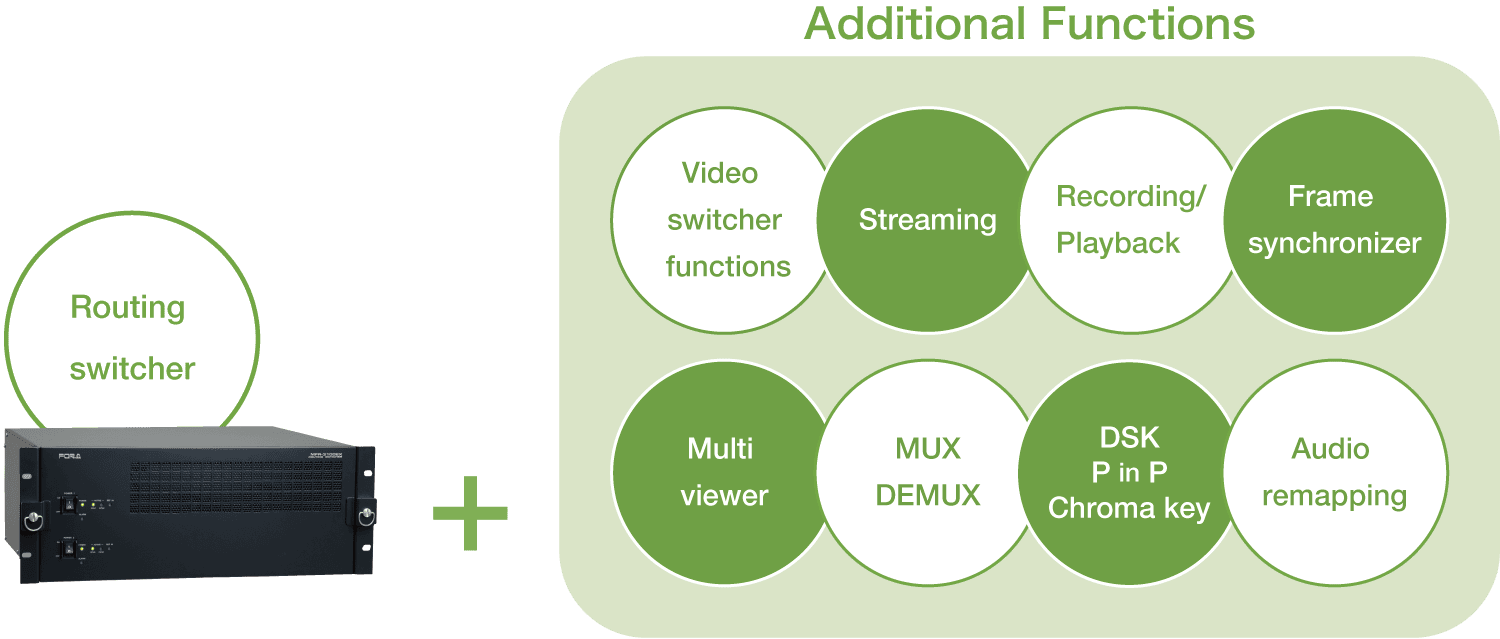

MFR-3100EX top image

Movie

  • Introduction

  • Webiner

Simplify

Simplify system or processes by adding functions to the MFR-3100EX.

シンプル化

Examples of usage

MFR-3100EX can fulfill multiple roles by adding optional functions. It enables the construction of compact systems used for a variety of applications and to simplify system operation by reducing the equipment and work processes involved. Additionally, support for NDI and streaming functions allows the router to take on roles that were not possible previously.


Relay and temporary events

  • Relay and temporary events
  • - Improved portability with less equipment
    - Simple system configuration makes monitoring status easier
    - Efficiency improvements:
    ・Reduces the labor and time spent wiring/setup and troubleshooting.
    ・Operation with a small staff is possible.


Studio System

  • Studio System
  • - MFR-3100EX can be a substitute switcher by adding a video switcher function. This allows for switching beyond emergency cuts.
    - Because routing, video switcher functions, AVDL, MUX, DSK, video recording/playback, and simultaneous streaming can all be operated on a single unit, it contributes to the overall simplification of studio systems.


Streaming System

  • Streaming System
  • - Mixed SDI/NDI expands equipment choices.
    - Stream directly from MFR-3100EX
    - Minimizing the equipment used allows for operation with a small staff


Streaming Event

  • Streaming Event
  • - Mixed SDI/NDI expands equipment choices.
    - With up to 72 outputs, it enables the distribution of various video/audio signals to streaming services and organizations without a distributor.

Use cases


MFR-3100EX Use cases

Features

Multi format

Supports multi-format inputs/outputs, audio mux/demux
Support for 3G/HD/SD-SDI and DVB-ASI input and output. With auto signal detection, there’ s no need to worry about signal formats. Up to 8 input cards and up to 9 output cards can be installed. Expandable up to 8 systems per card. It enables mixing and installation other than SDI module. The system can be optimized by installing a frame synchronizer in the input slot and an AVDL and SRC in the output slot. Also, Audio MUX/DEMUX function improves the compatibility of video and audio.


Gearbox

  • Versatile signal conversion

  • Gearbox Versatile signal conversion
  • 4K conversion (12G/Quad Link 3G, 2SI/SQD)
    Add the MFR-8SDIGB and MFR-8SDOGB cards for conversion of video (Quad Link 3G-SDI/12G-SDI) and mapping (2SI/SQD) formats. These options open the door for equipment previously incompatible with 12G-SDI, enabling system building focused on this new specification.
  • Applications
Gearbox Applications

System linkage with other products for flexible system operation

MFR series can be linked with other products including FOR-A video switcher HVS series or multi viewer MV series via LAN or serial port.
- MFR routing switcher crosspoints can be controlled from HVS video switchers.
- Integrated management of source names by MFR, which automatically send source names to HVS and MV multi viewers.
- HVS and MFR exchange tally information with each other.
- Source names and tally linkage between MFR and MV are controlled by TSL protocol.
* Support varies by model and function. For details, contact your FOR-A dealer.


MFR-3100EX_Connectivity

MFR-31VP

  • MFR-31VP
  • MFR-31VP provides 20 input/14 output 1M/E video switcher function, NDI support, Streaming and SSD.

Video switcher functions

Features

  • Input
    20 inputs
    - Primary 16 inputs + 4 inputs for NDI High Bandwidth/NDI HX*1 or clip (play)
    - Output from NDI equipment such as network cameras or recorded video can be used as an input sources.
  • Output
    14 outputs
    - 10 outputs for PGM/PREV/CLN/DSK/MV/AUX + 4 outputs forNDI High Bandwidth/NDI HX*1 or RTMP/RTMPS/SRT or recording
  • Video streaming/recording
    Video recording and streaming are available.
  • Transitions
    CUT, MIX and WIPE (vertical, horizontal and diagonal slides)
  • Keyers
    4 keyers for DSK (Down Stream Keyer) or PinP
  • Macro
    By registering a sequence of operations to the USER button, you can execute them with a single touch.
  • Multi viewer
    16 windows multi viewer

Software control panel MFR-CTSP*2

With the MFR-CTSP, all video switcher functions can be controlled with touch panel operations.


MFR-3100EX Software control panel

Hardware control panels

Operation available via HVS Series control panel the HVS-100OU*3,HVS-190OU*3and new control panel MFR-31OU*4An additional fader controller (MFR-31TBAR) is also available.

MFR-3100EX ardware control panels

*1 In addition to MFR-31VP, MFR-31VPS software option is also required.
*2 Optional, up to 3 panels are connectable
*3 Optional. PC with an installed MFR-CTSP and optional dedicated connection cable are required.
*4 Optional. For hard panels, MFR-31OU, HVS-190OU or HVS-100OU can be connected with MFR-3100EX.

NDI*1

  • MFR-3100EX NDI
  • Supports NDI High Bandwidth(SHQ 2/7*2), NDI HX(H.264/H.265*2),to send or receive video and audio, control signals, and tally control over IP. With NewTek NDI Tools, MFR-3100EX supports meeting collaboration software such as Zoom, Microsoft Teams or Google Meet.
    *1 In addition to MFR-31VP, MFR-31VPS software option is also required.
    *2 To be supported.

Dante®*

  • MFR-3100EX Dante
  • Supports up to 64 channels of Dante audio input/output. Both primary and secondary connectors support redundancy. Enables mixed routing of embedded, MADI, AES/EBU and analog audio.
    * In addition to MFR-31VP, the MFR-31DNT option (to be supported) is also required. Restrictions apply when using Dante. Please contact your FOR-A dealer for details.

Streaming

  • MFR-3100EX Streaming
  • Available live video recording and streaming. Provides RTMP,RTMPS and SRT support. Upload video directly to YouTube,Facebook, or other streaming services.

Storage

  • MFR-3100EX SSD
  • 960GB of SSD can be installed. It enables recording/playing video and audio. Content supplied via SDI or over the network can be encoded and saved as files. Saved files can be decoded for output via SDI or over the network. Includes up to 4 systems* of recording and 4 systems* of instant playback.
    * Available number varies depending on usage status of other functions.

Multi Viewer function

Browser-based multi viewer

Check source material easily through the built-in web server, saving outputs for other sources. For input channels (1–64) and video switcher function output, up to 64 windows can be displayed per screen.


Browser-based multi viewer

MFR-16MV

Up to 2 outputs/16 split-windows are available with an optional MFR-16MV installed. Unlike conventional systems that require allocation of 1 output per window displayed by an external multi viewer, this functionality reduces multi viewer output allocation to 1 output per monitor. Because of the MFR-16V’s ability to handle multiple outputs, all signals sent to those destinations can be monitored on the MFR-16MV. Up to 16 split-windows and 2 types of clock display are supported.


MFR-16MV

Improved usability

GUI-based configuration

A built-in web server enables immediate setup without installing software on external devices. With a dedicated GUI, settings can also be configured in an offline environment*.
* To be supported.

Versatile crosspoint control

Besides typical crosspoint switching, the unit enables a variety of crosspoint control.

  • Salvo
  • Take
  • Link
  • ErrorProofing(Inhibit, Lock).

MFR-LAN

Ethernet port connects MFR series options. Enables the connection of up to 128 units, including the main unit.

  • MFR-RU Series : Remote Control Unit
  • MFR-TALM:Tally Manager Unit
  • MFR-RULINK:MFR Remote Relay Unit
  • MFR-GPI:Interface Expansion Unit

Features to maintain a stable system

Outstanding redundancy

As core system components, FOR-A routing switchers can incorporate redundancy to ensure nonstop operation in case of problems.

  • Redundant power supply (optional MFR-31PS)
  • Redundant control board (optional MFR-31CPU)
  • Redundant ethernet (remote control) (optional MFR-31CPU)

GUI-based configuration and monitoring via web browser

Serving as an SNMP agent, the MFR-3100EX can simultaneously send traps to 2 SNMP managers for monitoring information about all devices connected to the MFR-LAN. Also, monitors all video inputs via the web browser.
