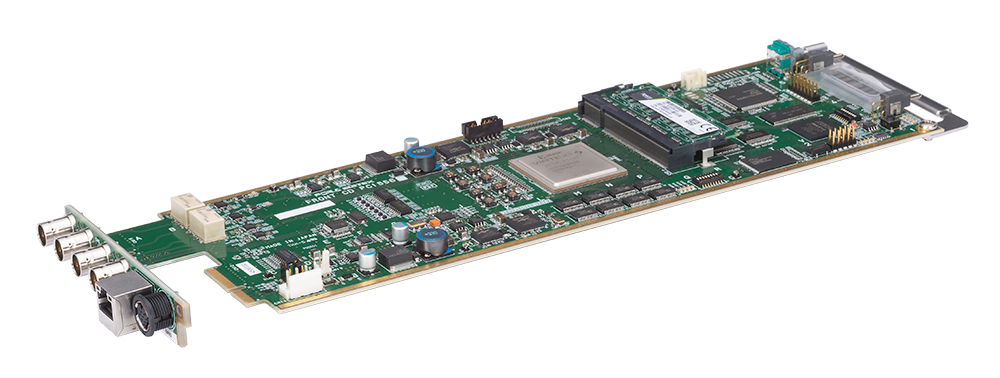

Modular SDI changeover switcher for USF-105AS or USF-212AS/212BS frames. Monitors status of two SDI inputs and seamlessly switches to the normal line if errors are detected.
Features
- Supports multi-bit rate 3G(Level A/B) and HD/SD-SDI signals
- Auto, semi-auto, and manual switching
- Detects CRC errors, sync loss, image freezing, black video, audio muting, and other errors
- Corrects delay between inputs
- Auto correction using image comparison, LTC, or VITC
- Manual correction setting range: 1–21 frames - Frame synchronization
- Delay correction and seamless switching even between asynchronous input
- Output signal locking - Signal bypass output
- Passthrough makes signal output available when offline - Configure settings and monitor input signal via built-in web server

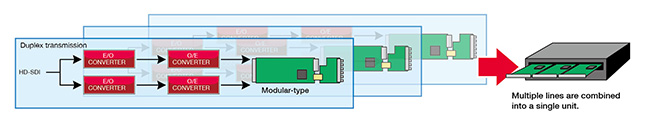

Examples of Downsizing in Duplex Transmission
