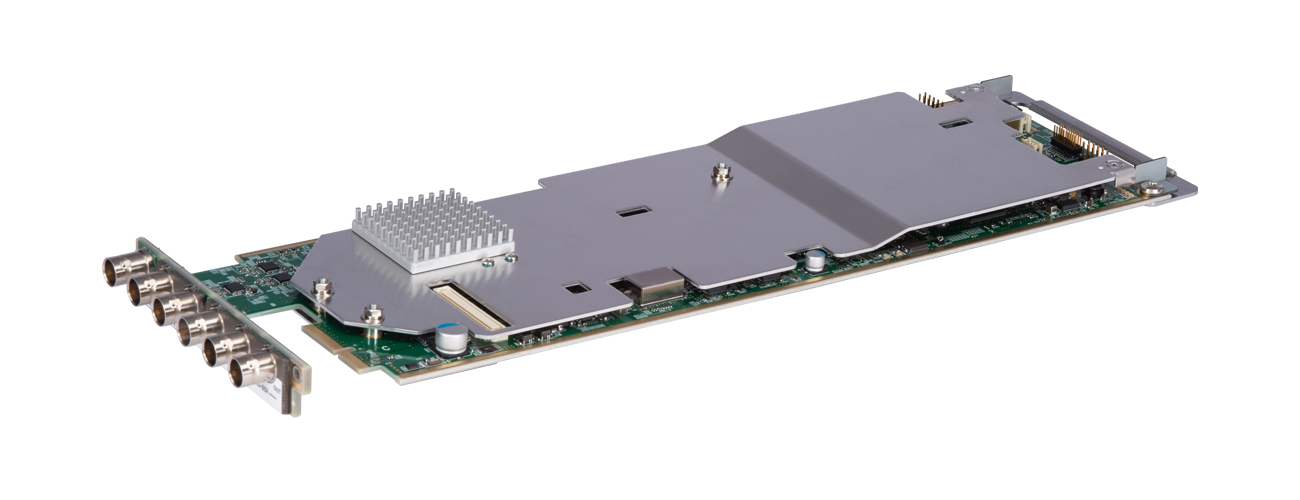

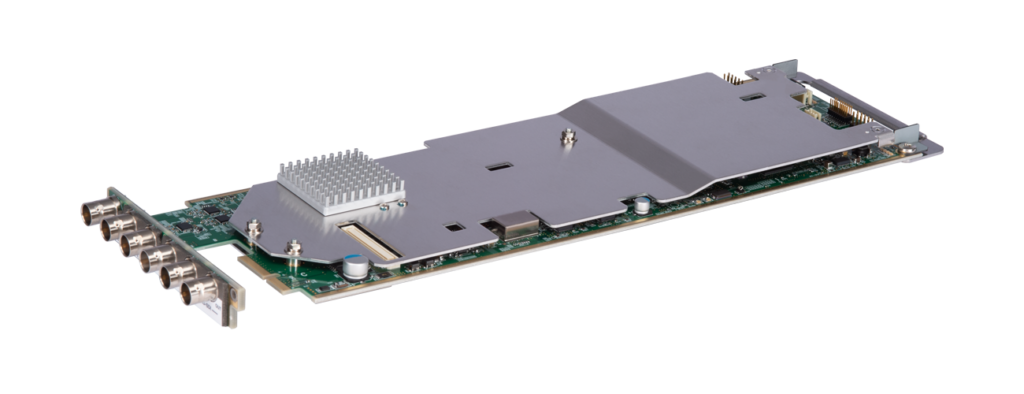

12G-SDI Frame Synchronizer

USF-105FS-12G

12G-SDI frame synchronizer

  • Supports 3840x2160 single link 12G-SDI
  • Supports 3840x2160 quad link (2SI, Level A) 3G-SDI (input and output are switched from a menu)
  • 12G-SDI and quad link 3G-SDI (2SI, Level A) conversion
  • FS mode: Adjusts phases and syncs asynchronous SDI signals to genlock signals
  • Automatic muting for detected audio errors
  • 16-channel audio sample rate converter (SRC)
  • Audio delay adjustment for each channel (up to 1,000 ms), and audio channel remapping
  • Audio downmixing for linear PCM
  • H/V ancillary data pass-through (synchronous input only)
  • Proc amp, video clip, video delay, and freeze
  • 16-channel embedded audio support (asynchronous audio support for 3G/HD-SDI)
  • SNMP monitoring
