Bidirectional conversion for 4K and 8K signals
Super Hi-Vision Dual Green Signal Converter

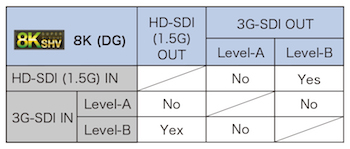

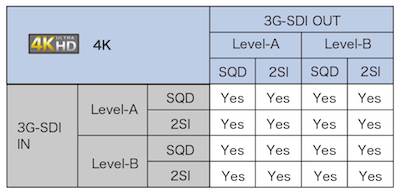

Bidirectional 8K HD-SDI (x16) - 3G-SDI (x8) and 4K Level-A/B, SQD/2SI signal conversion. Supports embedded audio, time code, and other ancillary data.
Automatic conversion mode switching, based on input signal payload. Manual switching is also selectable.
Automatic conversion mode switching, based on input signal payload. Manual conversion is also available. Each channel is separately configurable.
In 1.5G to 3G conversion
G1-a/b output: Channels 9-16 mapped behind 1-8 in stream A, and channels 1-8 behind 9-16 in stream B
G1-c/d output: Channels 25-32 mapped behind 17-24 in stream A, and channels 17-24 behind 25-32 in stream B

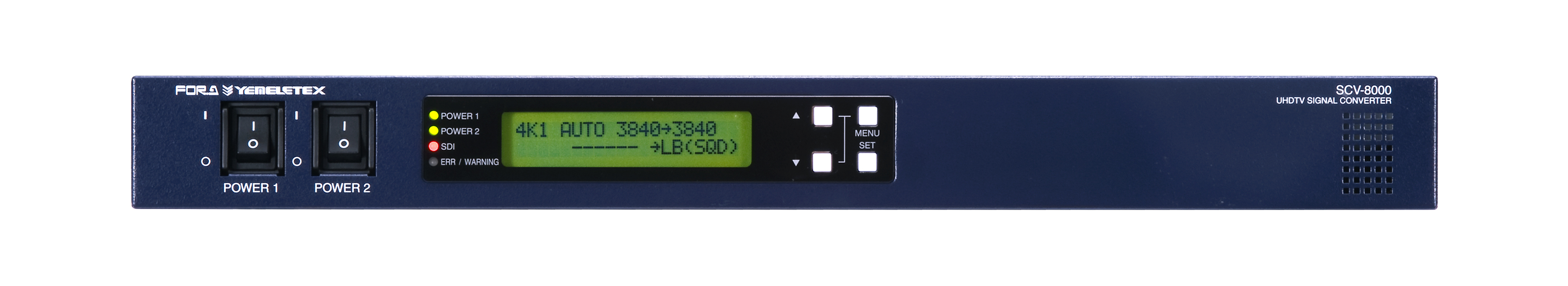

Convenient displays of operational mode (DG 8K/4K), conversion mode and frame frequency settings on the front LCD panel.
Built-in redundant power supply ensures uninterrupted operation in the event of a power supply failure.
