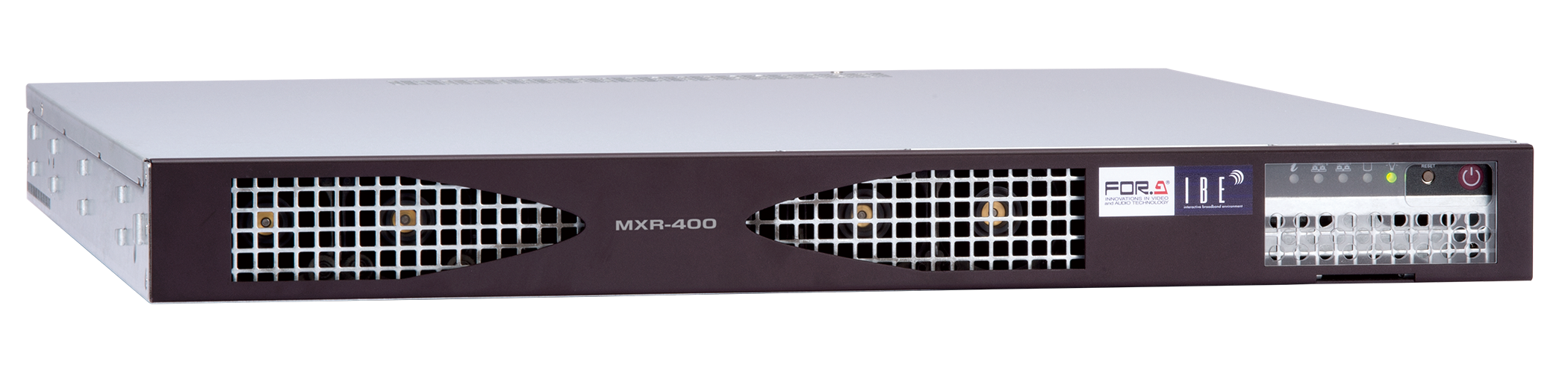

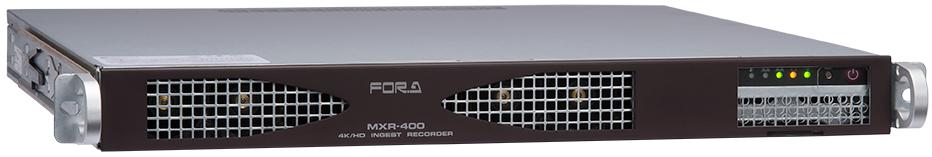

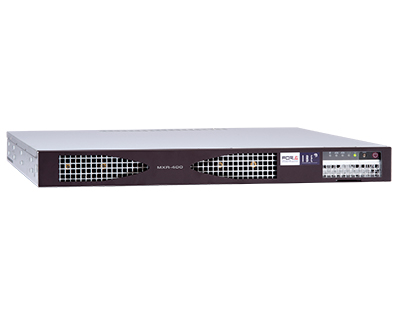

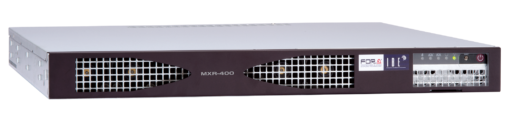

Ingest Encoder for 4K/HD File Based Production


Encoder/decoder equipped with SDI I/O and the H.264/AVC Intra/Long codec. Records MXF files and streams over IP.


  • Equipped with H.264 High 422 Intra/Long GOP (optional) codec.
  • H.264 High 4:2:2 Intra 10-bit codec, offering compression/decompression equivalent to XAVC Intra.
  • H.264 High 4:2:2 Long 10-bit codec, equivalent to XAVC QFHD Long422 200 (with optional license).
  • Serves as an all-in-one 4K (UHD)/HD recorder/player, by changing modes.
     - 4K (UHD): Supply 4K baseband signals (in SQD 59.94p/50p format, via Quad Link 3G-SDI) to record as Sony XAVC™ Intra-compatible MXF files.
     - HD-SDI: Supply HD baseband signals (in 59.94i/50i format, via dual HD-SDI) to record as Sony XAVC™ Intra-compatible MXF files.
  • MXF file splitting function enables editing of recorded video during ingest without stopping.
  • Recording and playback from an internal SSD.
  • Files can be copied between Internal SSD Storage and external storage.
  • Connect high-speed network storage to record MXF files (up to 6 hours) to NAS or directly play MXF files* stored in NAS.

    *Web browser control.
