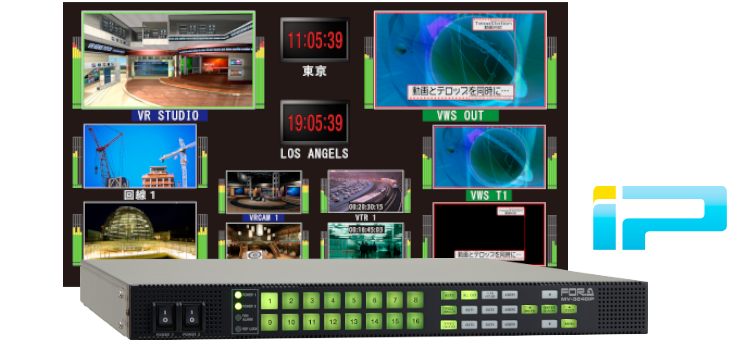

Multi-viewer that can accommodate up to 32 IP inputs. It supports SMPTE ST 2110-10/20/30/40 and SMPTE ST 2022-6/7. Ideal for a seamless transition to a MoIP ecosystem or a new system, while maintaining the environment, functionality, and operability of existing baseband systems.
Supports IP inputs/outputs and ideal for to check IP sources
- Inputs (Up to 32 inputs)
- IP (SMPTE ST 2110/ST 2022-6) Input: Up to 32 inputs for HD (3G/1.5G) or up to 8 inputs for 4K*1. - Outputs (Up to 5 outputs)
- IP (SMPTE ST 2110/ST 2022-6) Output: Up to 4 outputs for HD (3G/1.5G).
- SDI outputs : 4 outputs for 3G/HD-SDI or 1 output for 12G-SDI, or 1 output for 12G-SDI + 3 outputs for 3G-SDI, and 1 HDMI output.*2. - IP
- IP Standard: SMPTE ST 2110-10/20/30/40, SMPTE ST 2022-6/7.
- Compatible with SFP28 modules, the unit is ready for either 10 or 25 GbE environments.
- Uses NMOS IS-04 for stream registration and NMOS IS-05 for stream switching. - Windows: Freely layout up to 25 windows for one 4K or up to 40 windows for four 2K signals.
*1 Uncompressed. *2 HDMI outputs same video as SDI output.
Layout Manager and On-screen Monitoring

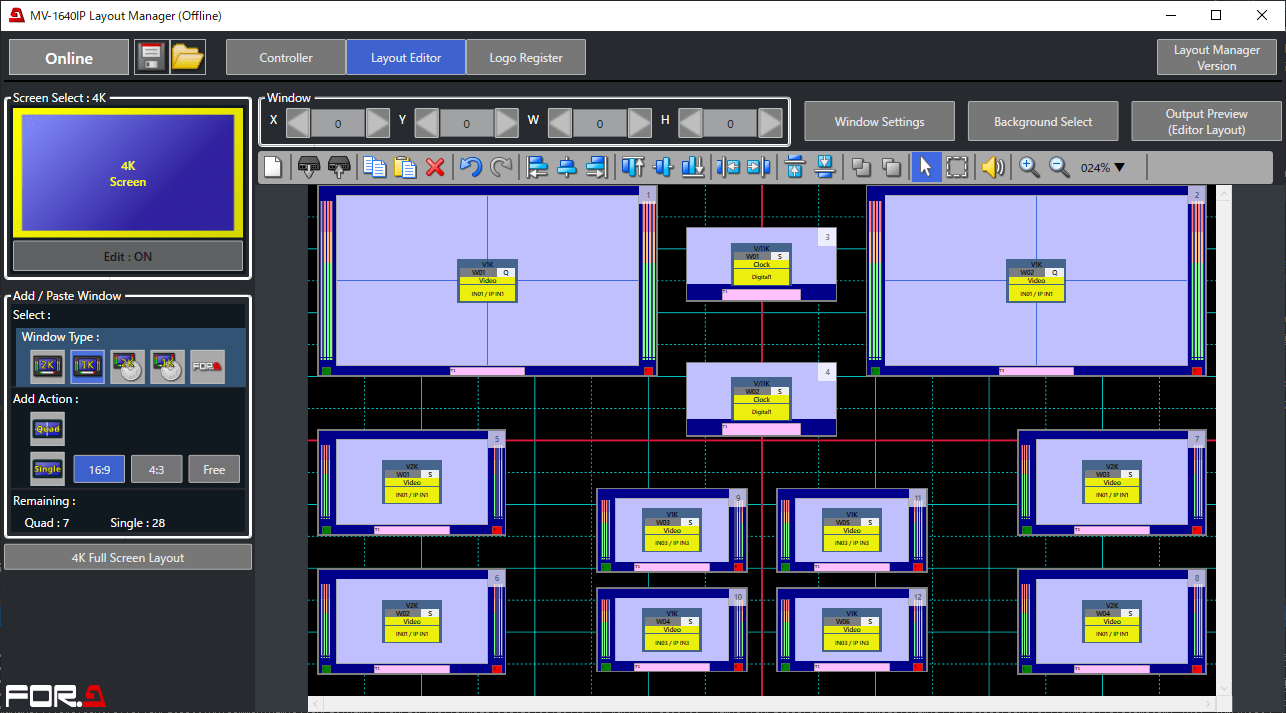

- Customizes layouts, using the software in Windows® to adjust image size, position, title display, and other settings.
- Stores layouts on the viewer.
- Recalls saved layouts directly from the front panel control.
- Logo display in title areas: Stores and displays 4 logo images.
- Tally, Title, and Timecode Display.
- Time of day, Timer, and Information Display.
- Can display time based on a 30-hour clock.
- Registers up to 24 schedule timers per day for 1 week.
- Supports data import even when offline.
-
Multiple units controlled via layout manager.
Audio
- Audio Level Display.
- Audio Monitoring Output.
M-JPEG Stream Output and Cropping

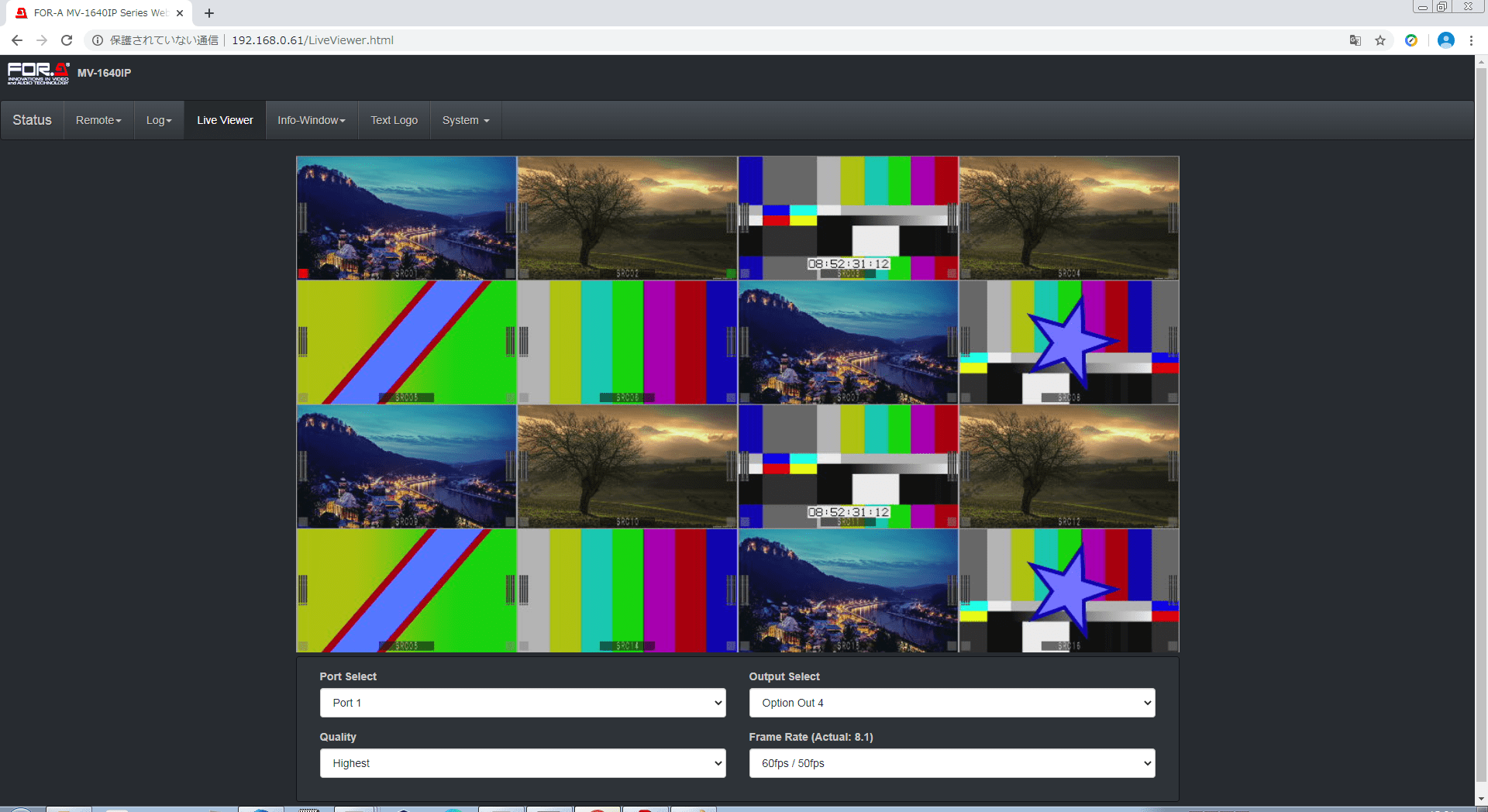

- An integrated M-JPEG streaming video output serves as a simple way to monitor signals outside of the control room, with users accessing the signal from any web-enabled device.
- Dedicated APP for Windows®:
- Monitor the M-JPEG streaming output on an app for Windows.
- Pre-alarm recording allows footage to be stored on PC HDD and reviewed when error occurs. - Cropping:
- Specifies areas to crop in pixels or by percent.
- Background image is shown outside cropped areas.
- Aspect ratio also maintained after partial cropping (of one side, for example).
Up/Down-resizing

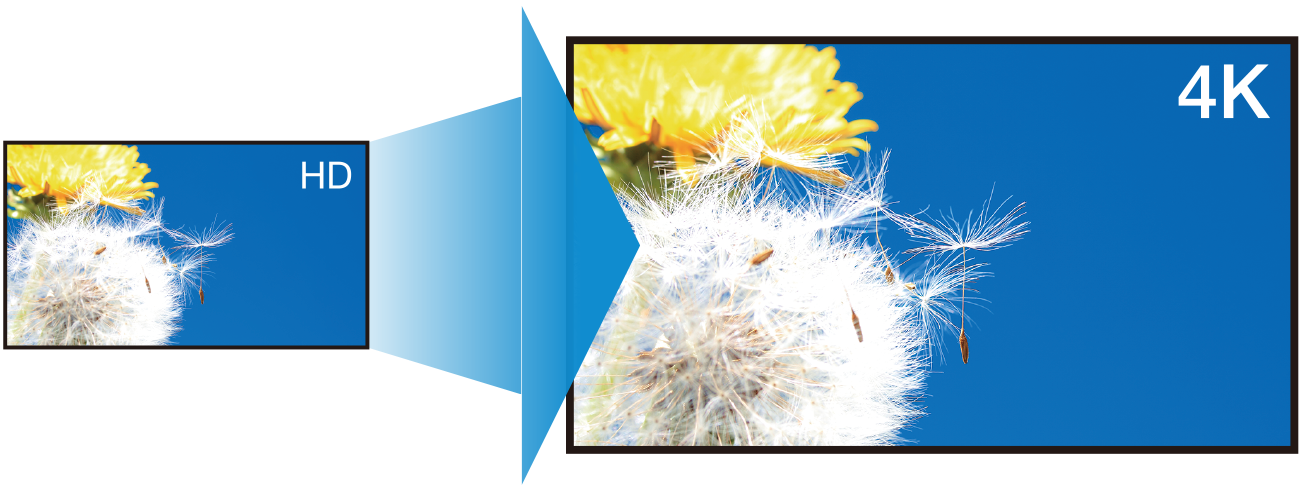

Resize from HD to 4K and from 4K to 2K.
Controls and Error Detection
- Supports external interfaces and control protocols (including monitoring), SNMP function.
- Supports Ember+.
- Monitor SFP communication status, result of IP/SDI conversion, PTP status and more via SNMP. - Detects frozen frames (Y/C and Y only).
- View error logs or user text in the Information Display.
- Flashing borders or error icons/messages to identify screens with errors.
- Pre-alarm recording allows footage to be stored on PC HDD and reviewed.
Cascading Function
- Cascade connection is possible between MV-3240IP and IP-compatible multi-viewer MV-1640IP*
- Enables an increase in the number of windows per monitor.
* Installation of the optional board MV-1640SDI is required. Cascade connection between MV-3240IP units is not possible.
