4K-input Support, 16 Channels of Input, HD Dual-Screen Output High Performance With Better Energy Efficiency

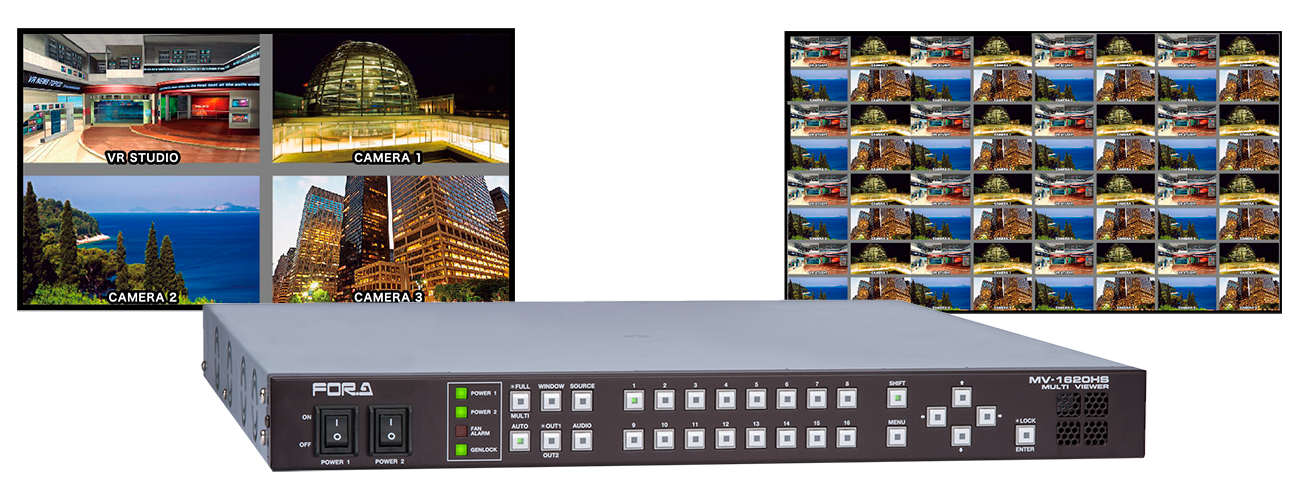

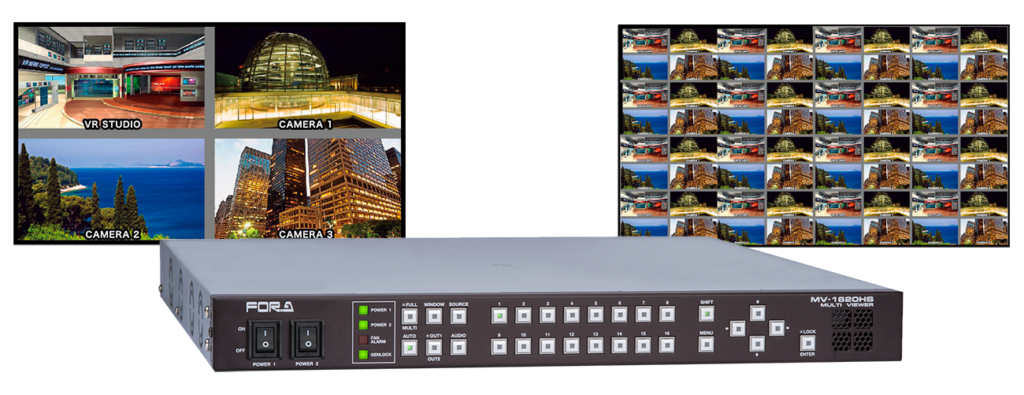

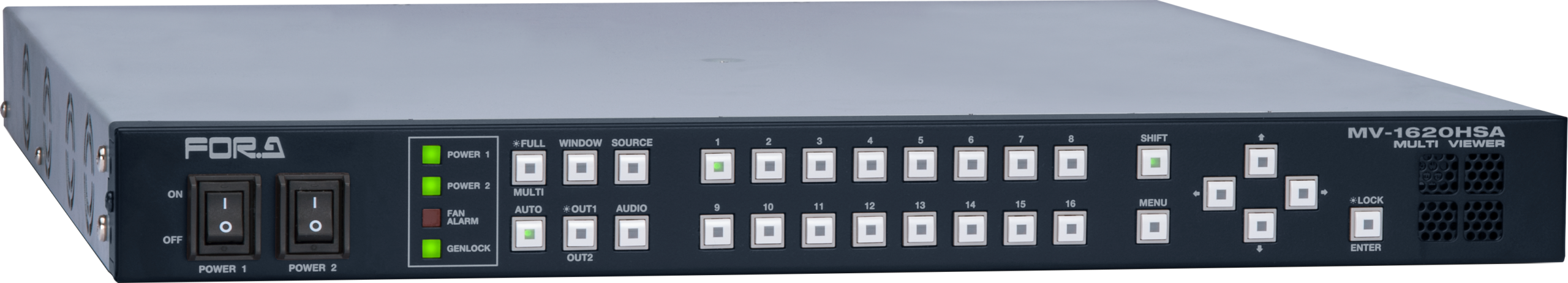

The MV-1620HSA is a compact (1U) multi-viewer that accepts up to 16 channels of mixed 3G/HD/SD-SDI or analog composite signals for monitoring on one or two screens. It can be cascaded with other units to display up to 64 sources at once. Full-featured, the unit offers a customizable window layout. View audio levels and use AFD-compatible cropping or information display as needed.
Edit a single 4K image from four 3G-SDI inputs
Layout Manager enables easy layout of 4K video in a seamless display
View up to 64 sources at once by cascading four units (4 x 16), with negligible sync signal latency
Using One Unit
- View two channels in different layouts
- View up to 20 windows for two channels
- View up to 4 clocks for two channels
- View up to 2 logos and 1 background per output
Cascaded Connection*
- Connect up to 4 units
- Negligible 6 μs latency at most relative to sync signal
- Use Layout Manager to configure the layout for each device
- Using an optional MV-1620DO for dual output
Feature
- Versatile Mixed-Source Environment
- Layout Manager
- Video Streaming
- Record Streamed Video
- HD Output of Source Signals
- Audio Level
- Vertical/Horizontal Level Meter
- Audio Monitoring Output
- Prominent Error Display
- Error Display
- Tally/Title/Timecode/Safety Area
- Logo/Background
- Time, Timer, and Information Display
- Information Display Function
- AFD-Compatible Cropping
- Detection of Closed Captioning
- Additional Features
AUX Remote Control Panel
Up to 2 control panels can be connected simultaneously.
-

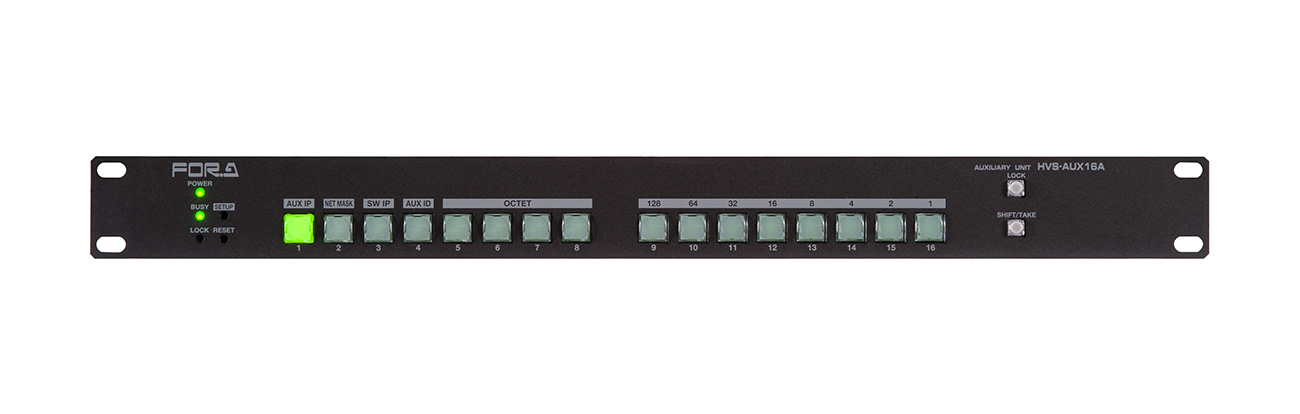

HVS-AUX16A
16 buttons, 1 RU -

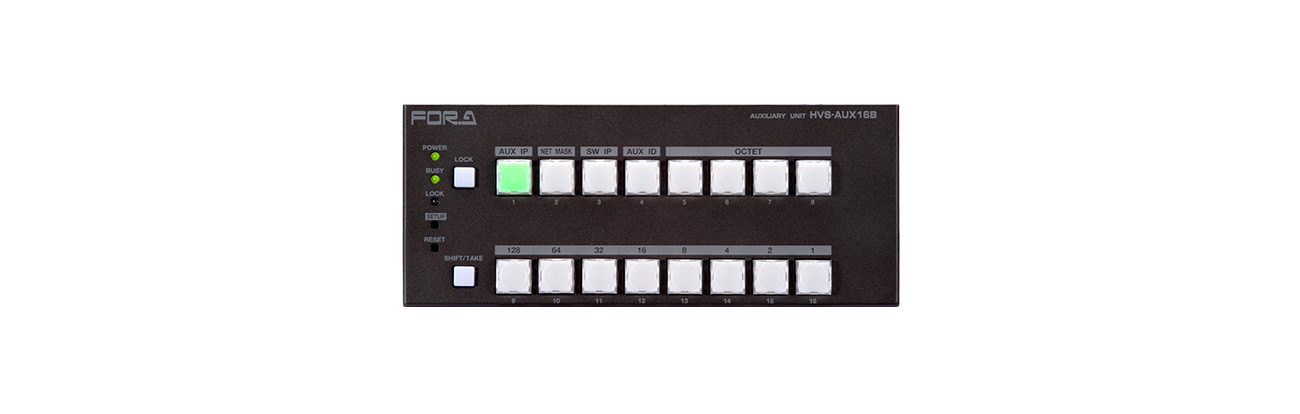

HVS-AUX16B
16 buttons, tabletop model -

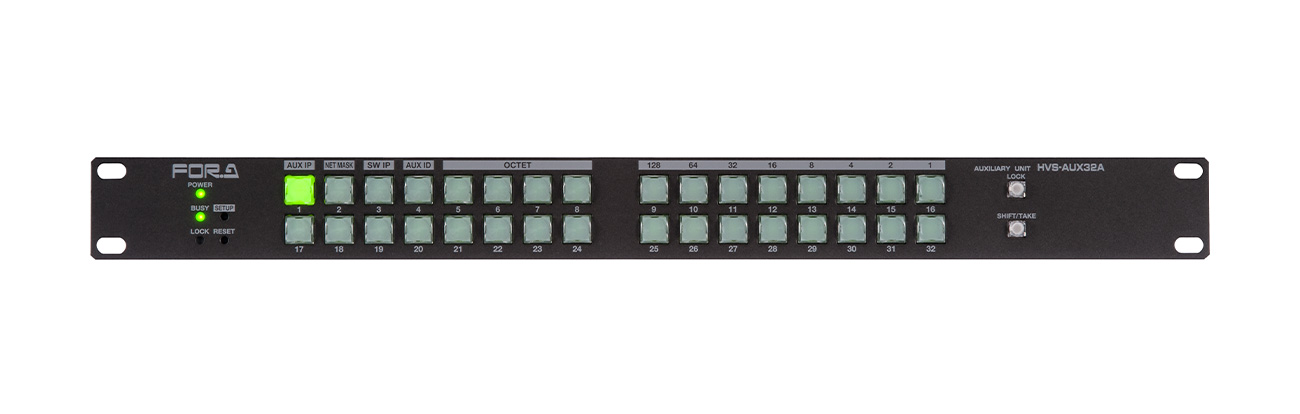

HVS-AUX32A
32 buttons, 1 RU -

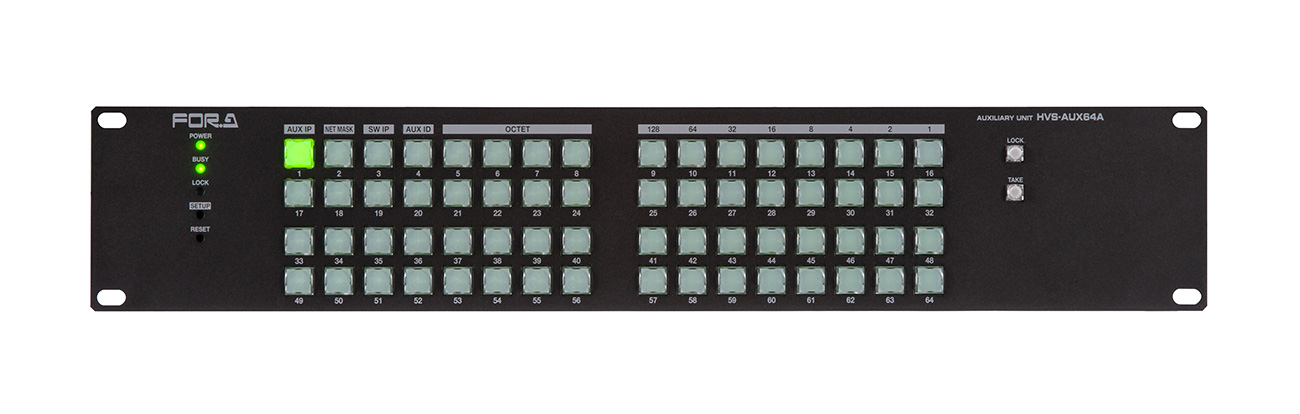

HVS-AUX64A
64 buttons, 2 RU
