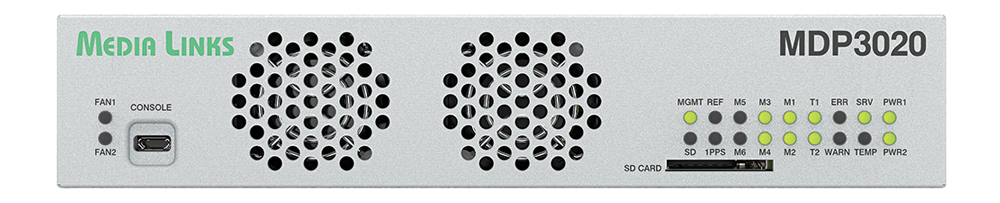

Compact Half-Rack IP Media Gateway
The Media Links MDP 3020 is an advanced, high quality standalone edge device, focused on addressing the needs of the broadcast media market. With insatiable demand for live content from all types of environments, the need for a portable, network protected, remotely configurable and cost effective edge device is huge. The MDP 3020 can process ever-increasing amounts of media information over IP networks, existing broadcast networks, as well as point-to -point fiber networks.
Further, the MDP 3020 is designed primarily for smaller scale remote production, MD8000 edge, and local point-to-point applications where economical IP media conversion is required.
The device can be used in three primary configurations, either separately or in combination due to its multichannel capability:
– For Contribution applications, as an edge device (encoder)
– For Distribution applications, as a remote video playout device (decoder)
– For Point-to-Point local video and distribution applications, when used in pairs (encoder to decoder)
Features
- Compatible with MD8000 platform
- Follows Standards (including SMPTE ST 2022-2/6/7, TR-01)
- Multi format support, including 3G/HD/SD-SDI/DVB-ASI(Supports TS Only)
- SDI and HDMI output interfaces
- Simultaneous video, audio, and data services
- 1GbE or 10GbE trunk interface
- Dual trunk protection (In/Out band Management)
- All resolutions up to 1080P
- On board provisioning interface
- On board provisioning interface
Applications
- Local access point to point (HDVT W/ MMC)
- Contribution Quality Broadcast Feeds
- Low cost network edge device
- Remote Production
