Options for the HVS-100

With the HVS-100, you can add just the input and output formats you need, in just the amount needed. There are three expansion slots so that other inputs and outputs can be installed, such as analog component, analog composite, HDMI and RGB in addition to HD/SD-SDI.

  • HVS-100DI-A: 4 Channel Digital Input Card

    4 channels of HD/SD-SDI input are possible with a single card. A frame synchronizer function for all inputs and re-size (expansion) function for 2 inputs are provided. SD images can be processed internally as HD images.

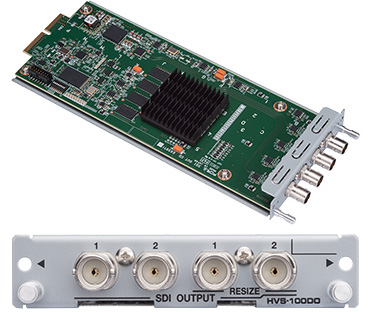

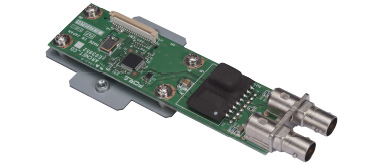

  • HVS-100DO: 2 Channel Digital Output Card

    2 channels of HD/SD-SDI output are possible with a single card. As down-converters are provided for all outputs, HD and SD images can simultaneously be output.

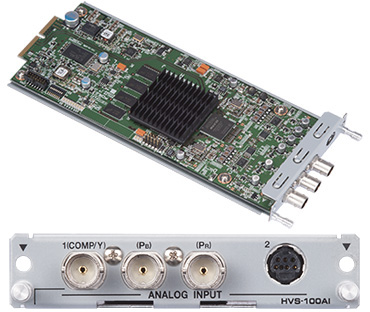

  • HVS-100AI: 2 Channel Analog Input Card

    2 channels of analog video signal input are possible with a single card. Input terminal 2 is a dedicated connector (conversion connector supplied). The user can select between analog composite and analog component (HD or SD) input for each input terminal.

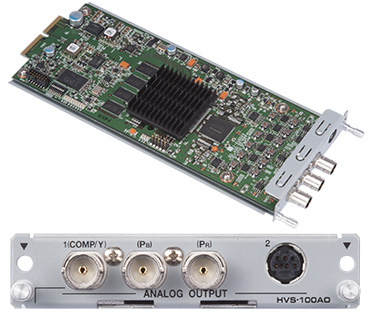

  • HVS-100AO: 2 Channel Analog Output Card

    2 channels of analog video signal output are possible with a single card. Output terminal 2 is a dedicated connector (conversion connector supplied). The user can select between analog composite and analog component (HD or SD) output for each output terminal.

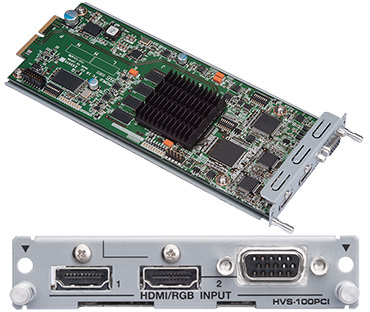

  • HVS-100PCI: 2 Channel VGA/HDMI Input Card

    HDMI and VGA terminals have been mounted onto a single card. 2 input channels are possible using both.

    Resolutions supported by the input cards
    HD mode* 1080/59.94p 1024 x 768/60Hz (XGA), 1280 x 1024/60Hz (SXGA), 1280 x 768/60Hz (WXGA), 1600 x 1200/60Hz (UXGA), 1920 x 1200/60Hz (WUXGA), 1920 x 1080/59.94p (HDTV)
    1080/50p 1024 x 768/60Hz (XGA)**, 1280 x 1024/60Hz (SXGA)**, 1280 x 768/60Hz (WXGA)**, 1600 x 1200/60Hz (UXGA)**, 1920 x 1200/60Hz (WUXGA)**, 1920 x 1080/50p (HDTV)
    1080/29.97p 1920 x 1080/29.97p (HDTV)
    1080/25p 1920 x 1080/25p (HDTV)
    1080/24p 1920 x 1080/24p (HDTV)
    1080/23.98p 1920 x 1080/23.98p (HDTV)
    1080/59.94i 1024 x 768/60Hz (XGA), 1280 x 1024/60Hz (SXGA), 1280 x 768/60Hz (WXGA), 1600 x 1200/60Hz (UXGA), 1920 x 1200/60Hz (WUXGA), 1920 x 1080/59.94i (HDTV)
    1080/50i 1024 x 768/60Hz (XGA)**, 1280 x 1024/60Hz (SXGA)**, 1280 x 768/60Hz (WXGA)**, 1600 x 1200/60Hz (UXGA)**, 1920 x 1200/60Hz (WUXGA)**, 1920 x 1080/50i (HDTV)
    1080/29.97PsF 1024 x 768/60Hz (XGA), 1280 x 1024/60Hz (SXGA), 1280 x 768/60Hz (WXGA), 1600 x 1200/60Hz (UXGA), 1920 x 1200/60Hz (WUXGA), 1920 x 1080/29.97PsF (HDTV)
    1080/25PsF 1024 x 768/60Hz (XGA)**, 1280 x 1024/60Hz (SXGA)**, 1280 x 768/60Hz (WXGA)**, 1600 x 1200/60Hz (UXGA)**, 1920 x 1200/60Hz (WUXGA)**, 1920 x 1080/25PsF (HDTV)
    720/59.94p 1024 x 768/60Hz (XGA), 1280 x 1024/60Hz (SXGA), 1280 x 768/60Hz (WXGA), 1280 x 720/59.94p (HDTV)
    720/50p 1024 x 768/60Hz (XGA)**, 1280 x 1024/60Hz (SXGA)**, 1280 x 768/60Hz (WXGA)**, 1280 x 720/50p (HDTV)
    SD mode 625/50i 640 x 480/60Hz (VGA)**, 800 x 600/60Hz (SVGA)**, 1024 x 768/60Hz (XGA)**, 720 x 576/50i (SDTV, PAL)
    525/60i 640 x 480/60Hz (VGA), 800 x 600/60Hz (SVGA), 1024 x 768/60Hz (XGA), 720 x 480/60i (SDTV, NTSC)

    * HDCP-incompatible

    ** Video signal disturbances may occur in 25 or 50 system frame rate formats, when Input images are played at a 60Hz refresh rate.

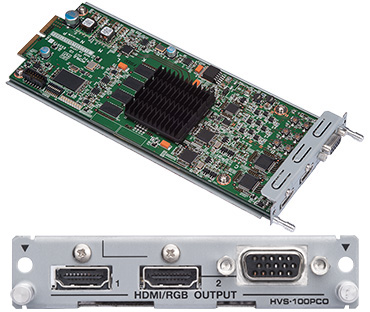

  • HVS-100PCO: 2 Channel VGA/HDMI Output Card

    HDMI and VGA terminals have been mounted onto a single card. 2 output channels are possible using both.

    Resolutions supported by the output cards
    HD mode* 1080/59.94p 1280 x 1024/60Hz (SXGA), 1600 x 1200/60Hz (UXGA), 1680 x 1050/60Hz (WSXGA), 1920 x 1200/60Hz (WUXGA), 1920 x 1080/59.94p (HDTV)
    1080/50p 1280 x 1024/60Hz (SXGA)**, 1600 x 1200/60Hz (UXGA)**, 1680 x 1050/60Hz (WSXGA) **, 1920 x 1200/60Hz (WUXGA)**, 1920 x 1080/50p (HDTV)
    1080/29.97p 1280 x 1024/60Hz (SXGA), 1600 x 1200/60Hz (UXGA), 1680 x 1050/60Hz (WSXGA), 1920 x 1200/60Hz (WUXGA), 1920 x 1080/29.97p (HDTV)
    1080/25p 1280 x 1024/60Hz (SXGA)**, 1600 x 1200/60Hz (UXGA)**, 1680 x 1050/60Hz (WSXGA)**, 1920 x 1200/60Hz (WUXGA)**, 1920 x 1080/25p (HDTV)
    1080/24p 1920 x 1080/24p (HDTV)
    1080/23.98p 1920 x 1080/23.98p (HDTV)
    1080/59.94i 1280 x 1024/60Hz (SXGA), 1600 x 1200/60Hz (UXGA), 1680 x 1050 /60Hz (WSXGA), 1920 x 1200/60Hz (WUXGA), 1920 x 1080/59.94i (HDTV)
    1080/50i 1280 x 1024/50Hz (SXGA), 1280 x 1024/60Hz (SXGA)**, 1600 x 1200/50Hz (UXGA), 1600 x 1200/60Hz (UXGA)**, 1680 x 1050/50Hz (WSXGA), 1680 x 1050/60Hz (WSXGA)**, 1920 x 1200/50Hz (WUXGA), 1920 x 1200/60Hz (WUXGA)**, 1920 x 1080/50i (HDTV)
    1080/29.97PsF 1280 x 1024/60Hz (SXGA), 1600 x 1200/60Hz (UXGA), 1680 x 1050 /60Hz (WSXGA), 1920 x 1200/60Hz (WUXGA), 1920 x 1080/29.97PsF (HDTV)
    1080/25PsF 1280 x 1024/50Hz (SXGA), 1280 x 1024/60Hz (SXGA)**, 1600 x 1200/50Hz (UXGA), 1600 x 1200/60Hz (UXGA)**, 1680 x 1050/50Hz (WSXGA), 1680 x 1050/60Hz (WSXGA)**, 1920 x 1200/50Hz (WUXGA), 1920 x 1200/60Hz (WUXGA)**, 1920 x 1080/25PsF (HDTV)
    720/59.94p 1280 x 1024/60Hz (SXGA), 1280 x 768/60Hz (WXGA), 1280 x 720/59.94p (HDTV)
    720/50p 1280 x 1024/50Hz (SXGA), 1280 x 1024/60Hz (SXGA)**, 1280 x 768/50Hz (WXGA), 1280 x 768/60Hz (WXGA)**, 1280 x 720/50p (HDTV)
    SD mode 625/50i 800 x 600/50Hz (SVGA), 800 x 600/60Hz (SVGA)**, 720 x 576/50i (SDTV, PAL)
    525/60i 800 x 600/60Hz (SVGA), 720 x 480/60i (SDTV, NTSC)

    * HDCP-incompatible

    ** Video signal disturbances may occur in 25 or 50 system frame rate formats, when Output images are played at a 60Hz refresh rate.

HVS-100PSM/100PSO : Redundant Power Supply Unit

  • HVS-100PSM: For the HVS-100
  • HVS-100PSO: For the HVS-100OU Control Panel

Options for the HVS-110

HVS-110PSM: Redundant Power Supply Unit

For the HVS-110

EIA Rack Mount Brackets

Options for the HVS-100 and 110

  • HVS-TALOC32/TALR32: Tally Control Unit (via RS-422)

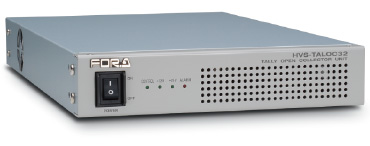

    HVS-TALOC32

    Open collector type HVS-TALOC32 or relay type HVS-TALR32 can be connected. They are both half-rack size, and up to 3 units can be connected to the HVS-100 or HVS-110.

    • HVS-TALOC32: open collector type with 32 terminals
    • HVS-TALR32: relay type with 32 terminals

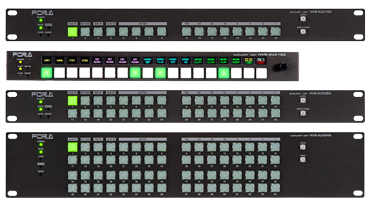

  • HVS-AUX16A/AUX16C/AUX32A/AUX64A: AUX Bus Control Box (Ethernet connection)

    HVS-AUX16A / HVS-AUX16C / HVS-AUX32A / HVS-AUX64A (from top to bottom)

    AUX bus control box with either 16, 32 or 64 buttons. The 16-button control boxes and the 32-button control box are 1RU in size and the 64-button control box is 2RU in size. 5 AUX bus control boxes can be daisy-chained via Ethernet.

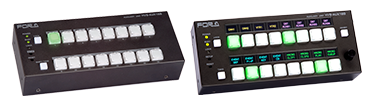

  • HVS-AUX16B/AUX16D: Desktop Type of AUX Bus Control Box (Ethernet connection)

    left: HVS-AUX16B / right: HVS-AUX16D

    Desktop type of AUX remote control boxes with 16 buttons.

  • HVS-100ARC: Arcnet I/F Card

    This enables connection to HVS-AUX8/AUX16/AUX32*.
    *For details, contact your FOR-A dealer.

  • HVS-100EXP3G: 3Gbps Expansion Software

    Software to support 1080p format and 4K square division transmission methods.

  • HVS-100ED: Editor Control Software

    Interface software to connect with an external device that supports BVS-3000/DVS and GVG-100 protocols.

  • HVS-100VR: Virtual Link Software

    Software for establishing a link between FOR-A Virtual System and HVS-100/110 to build a compact virtual studio system comprised of multiple cameras and small number of CG/combine processors.

  • HVS-100IS: Infinity Set Link Software

    Software to add support to connect HVS-100/110 to PC installed InfinitySet* and switch videos from InfinitySet via HVS-100/110 control panel.
    *Advanced Virtual Set Solution developed by Brainstorm.
