BTO

Up/Down/Cross Converter

UFM-30UDC

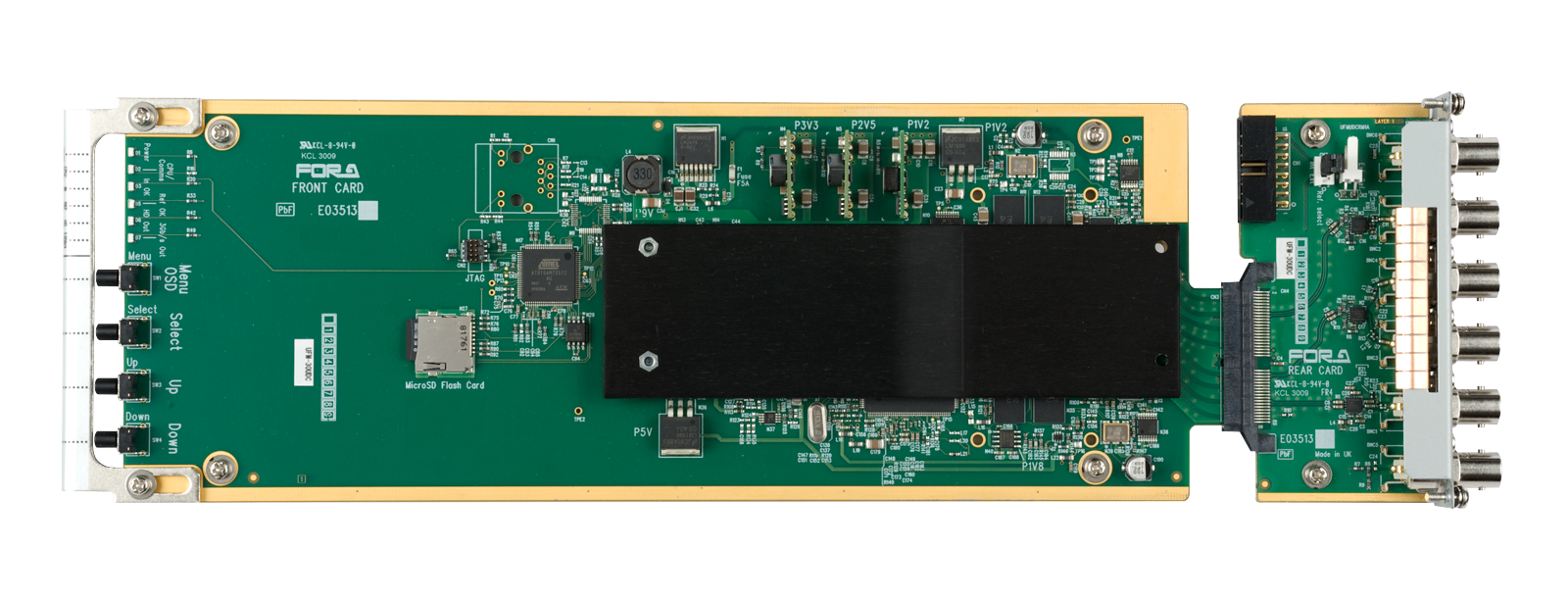

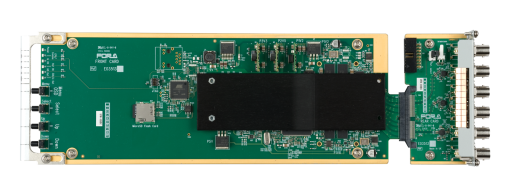

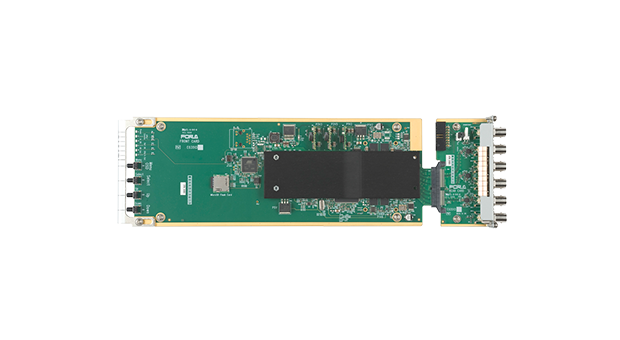

UFM-30UDC is an up/down/cross converter, which can be mounted on a UFM frame. It is standardly equipped with next-generation broadcast signal interface 3G-SDI and it allows users to convert video signals in a wide variety of formats.

  • Up/down/cross converter equipped with 3G/HD/SD-SDI input/output
  • 3G Level A and Level B supported
  • 3G/HD/SD-SDI 1 input / 2 outputs and analog composite 1 input
  • Additional 3G/HD/SD-SDI output for preview use
  • Analog composite output for displaying menu (monitoring also possible)
  • Up to 8 channels embedded audio input/output
  • Frame synchronizer
  • Aspect ratio converter
  • On-Screen Display (OSD) available on Preview output
