Specifications
| Input Video Formats | 3G-SDI: 1080/60p (Level-A), 1080/59.94p (Level-A/B), 1080/50p (Level-A/B) HD-SDI: 1080/59.94i, 1080/50i, 1080/30p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p, 1080/24PsF, 1080/23.98PsF, 720/59.94p, 720/50p SD-SDI: 525/60, 625/50 |
|
|---|---|---|
| Output Video Formats | 3G-SDI: 1080/60p (Level-A), 1080/59.94p (Level-A/B), 1080/50p (Level-A/B) HD-SDI: 1080/59.94i, 1080/50i, 1080/30p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p, 1080/24PsF, 1080/23.98PsF, 720/59.94p, 720/50p SD-SDI: 525/60, 625/50 |
|
| Video Input | 3G-SDI: 3 Gbps, HD-SDI: 1.5 Gbps or SD-SDI: 270 Mbps, 75Ω, BNC x 5 | |
| Video Output | 3G-SDI: 3 Gbps, HD-SDI: 1.5 Gbps or SD-SDI: 270 Mbps, 75Ω, BNC x 10 *Distribution output for each channel |
|
| Processing | 4:2:2 Digital component | |
| Quantization | 3G/HD/SD-SDI: 10-bit | |
| Genlock Input | BB: NTSC: 0.429 Vp-p/PAL: 0.45 Vp-p or Tri-level Sync: 0.6 Vp-p, 75Ω, BNC x 1, loop-through (to be terminated with 75Ω terminator, if unused) | |
| Synchronizer Modes | Frame Sync, Line Sync, AVDL, Line (Minimum) | |
| System Phase Control | Frame Sync Mode | H: -1/2H to +1/2H V: -1/2 frame to +1/2 frame Delay: Max. 1 frame +1H / Min. 1H |
| Line Sync Mode | H: -1/2H to +1/2H V: -1/2 frame to +1/2 frame Delay: Max. 1H +1/2H / Min. 1H +2H |
|
| AVDL Mode | H: -1/2H to +1/2H V: -1/2 frame to +1/2 frame Delay (HD): Max. 5H +1/2H +1H / Min. 1/2H Delay (SD): Max. 1H +1/2H +1H / Min. 1/2H |
|
| Video Delay | Max. 8 frames (in Frame Sync mode) | |
| Video Processing Functions | Proc Amp, Color Corrector, Up/Down/Cross/Aspect Converter | |
| Proc. Amp. | Video level: 0.0% to 200.0% Chroma level: 0.0% to 200.0% Black level: -20.0% to 100.0% HUE: -179.8° to +180° |
|
| Video Clip | YPbPr, RGB | |
| Color Correction | Balance, Differential, Sepia | |
| Audio Input | Embedded Audio | 3G/HD: 16 channels (Group 1 to 4), 48 kHz, 16-bit to 24-bit, synchronous/asynchronous (Link A embedded audio only in 3G Level-B) SD: 16 channels (Group 1 to 4), 48 kHz, 16-bit to 24-bit, synchronous only |
| Audio Input (optional) |
FA-10AES-BL (AES/EBU) |
Balanced, 0.2 Vp-p to 7 Vp-p, 110Ω, 25-pin D-sub (female) x 1, input/output, 4 pairs of stereo channels, 32/44.1/48 kHz, 16-bit to 24-bit |
| FA-10AUS-UBL (AES/EBU) |
Unbalanced, 1.0 Vp-p, 75Ω, BNC x 4, input/output, Max. 4 pairs of stereo channels, 32/44.1/48 kHz, 16-bit to 24-bit |
|
| FA-10ANA-AUD (Analog Audio) |
<Line Input> Balanced or unbalanced, 4 channels (2 pairs of stereo channels), 25-pin D-sub (female) x 1 (shared with analog audio output) 600Ω / hi-impedance, 48 kHz, 24-bit Input level: -10 dBu to +8 dBu <Mic Input> Balanced or unbalanced, 2 channels (1 pair of stereo channels), (shared with the analog audio input CH1/CH2 connector), 600Ω/Hi-impedance, 48 kHz, 24-bit Input level: -55 dBu to -30 dBu |
|
| Audio Output | Embedded Audio | 3G/HD: 16 channels (Group 1 to 4), 48 kHz, 16/20/24-bit, synchronous/asynchronous (Link A embedded audio only in 3G Level-B) SD: 12 channels (Group 1 to 3), 48 kHz, 16/20/24-bit, synchronous only |
| Audio Output (optional) |
FA-10AES-BL (AES/EBU) |
Balanced, 3.3 Vp-p, 110Ω, 25-pin D-sub (female) x 1, input/output, 4 pairs of stereo channels, 48 kHz, 16/20/24-bit |
| FA-10AES-UBL (AES/EBU) |
Unbalanced, 1.0 Vp-p, 75Ω, BNC x 4, Max. 4 pairs of stereo channels, 48 kHz, 16/20/24-bit | |
| FA-10AES-UBLC (AES/EBU) |
Unbalanced, 1.0 Vp-p, 75Ω, BNC x 4, Max. 4 pairs of stereo channels, 48 kHz, 16/20/24-bit (The FA-10AES-UBL ifunctions as an input card when used with the FA-10AES-UBLC.) |
|
| FA-10ANA-AUD (Analog Audio) |
Balanced or unbalanced, 4 channels (2 pairs of stereo channels) 25-pin D-sub (female) x 1 (shared with analog audio input) 100Ω or lower impedance, 48 kHz, 24-bit Output level: -10 dBu to +8 dBu |
|
| Audio Delay | 5 ms to 1,000 ms (adjustable in 1 ms steps) | |
| Audio Processing | Sampling rate converter (SRC), Gain control, Down mix, Channel re-mapping, Channel mute | |
| Interface | Ethernet (100Base-TX/1000Base-T): RJ-45 x 1 | |
| Interface (optional) |
FA-10GPI: 25-pin D-sub (female) x 1 | |
| Temperature / Humidity | 0°C to 40°C / 30% to 90% (no condensation) | |
| Power | 100 VAC to 240 VAC ±10%, 50/60 Hz | |
| Consumption | FA-505 | 80 VA (79 W) (at 100 VAC to 120 VAC), 90 VA (77 W) (at 220 VAC to 240 VAC) with FA-50PS: 90 VA (86 W) (at 100 VAC to 120VAC), 108 VA (78 W) (at 220 VAC to 240 VAC) Add the consumption of each options you select. |
| FA-10AES-BL | 4.3 VAC (4.2 W) (100 VAC to 120 VAC) 3.48 VAC (3.8 W) (220 VAC to 240 VAC) |
|
| FA-10AES-UBL | 2.86 VAC (3 W) (100 VAC to 120 VAC) 3.12 VAC (3.1 W) (220 VAC to 240 VAC) |
|
| FA-10GPI | 4.6 VAC (4.8 W) (100 VAC to 120 VAC) 4.1 VAC (4.3 W) (220 VAC to 240 VAC) |
|
| Dimensions | 430 (W) x 400 (D) x 44 (H) mm | |
| Weight | FA-505: 7.0kg (without options) FA-10AES-BL: 0.2 kg FA-10AES-UBL: 0.2 kg FA-10AES-UBLC: 0.1 kg FA-10ANA-AUD: 0.1 kg FA-10GPI: 0.2 kg |
|
| Consumables | Power supply unit (to be replaced within 3 years) Cooling fan: P-1439-2 (FAN 1-4) (to be replaced within 5 years) |
|
| Accessories | CD-ROM (Windows GUI, Operation Manuals), AC cord, Rack mount brackets | |
| Options |
FA-10RU: Remote control unit FA-10DCCRU: Remote control unit for color correction FA-AUX30: AUX extension panel (with a connection capability with the FA-10RU, FA-10GPI) FA-10AES-BL: Digital audio balanced I/O option FA-10AES-UBL: Digital audio unbalanced I/O option FA-10AES-UBLC: Digital audio unbalanced output expansion cable FA-10ANA-AUD: Analog Audio I/O option FA-10GPI: GPI 10 each input/output option FA-50PS: Redundant power supply unit |
|
Product Details

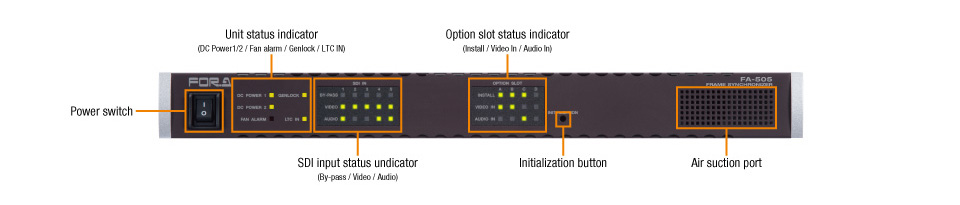

FA-505 Front View

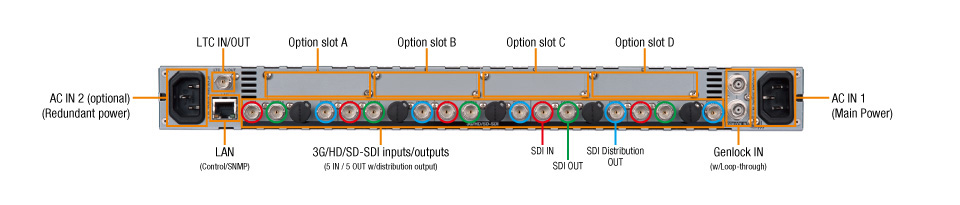

FA-505 Rear View

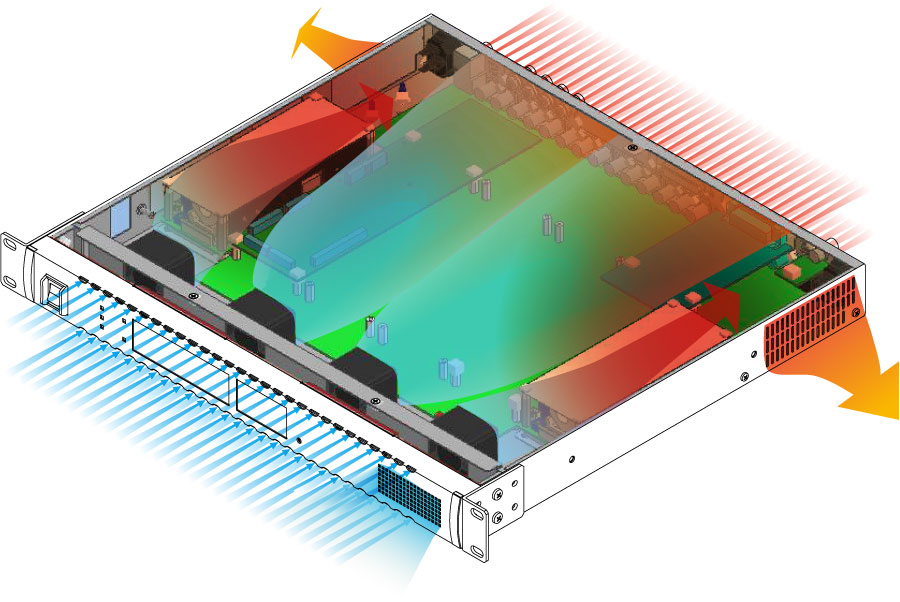

FA-505 Cooling System

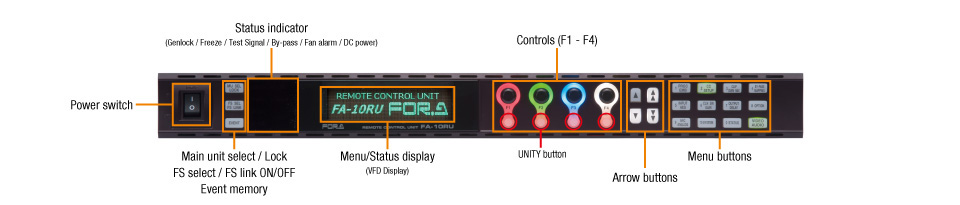

FA-10RU Front View

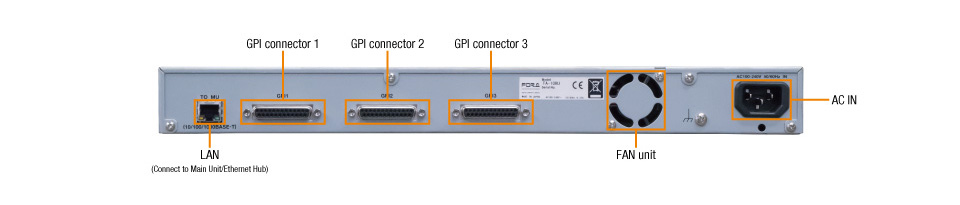

FA-10RU Rear View

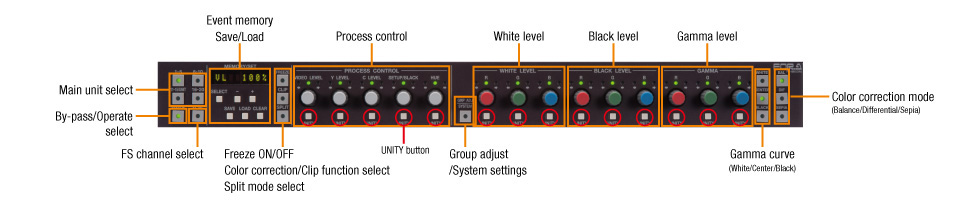

FA-10DCCRU Front View

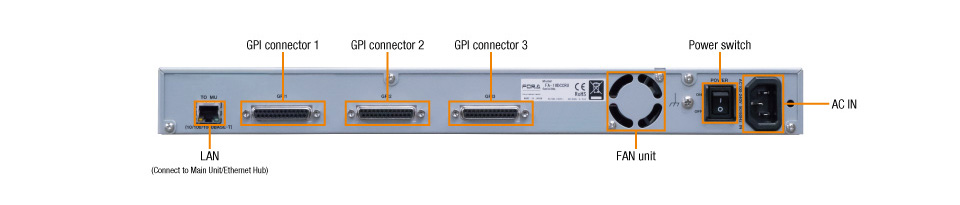

FA-10DCCRU Rear View

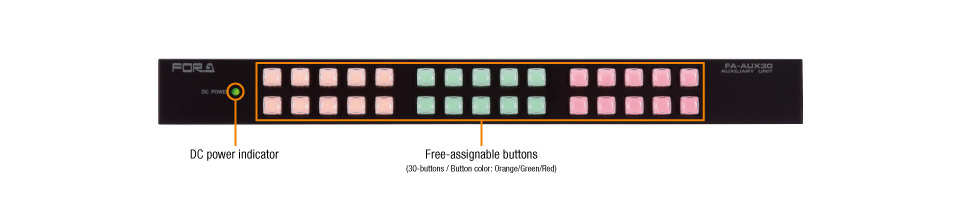

FA-AUX30 Front View

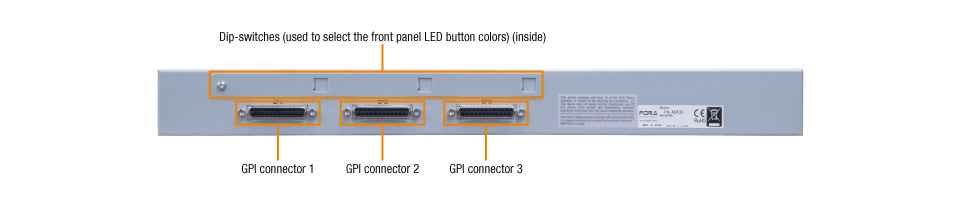

FA-AUX30 Rear View
Dimensions

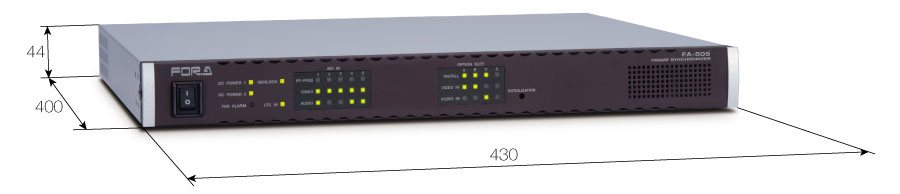

FA-505

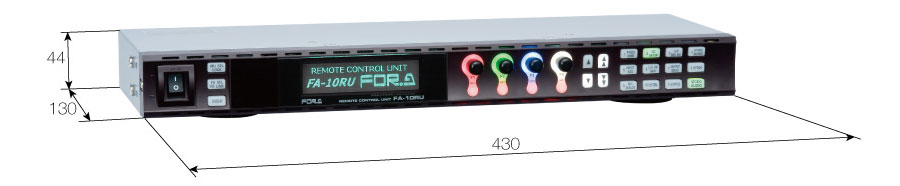

FA-10RU (Remote Control Unit)

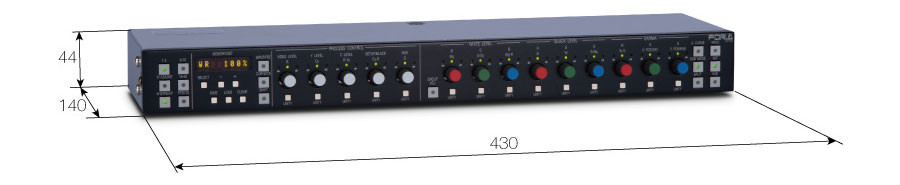

FA-10DCCRU (Remote Control Unit for Color Corrector)

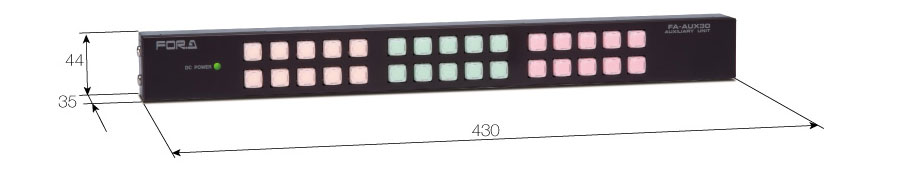

FA-AUX30 (Remote Control Panel)
