The compact 1U half-size routing switcher boosts exceptional cost performance.
4 multi-bit rate inputs and outputs. Supports 12G/6G/3G/HD/SD-SDI and DVB-ASI signals.
3 Models Lineup

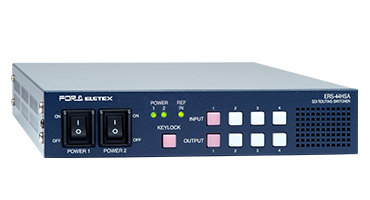

ERS-44HSA

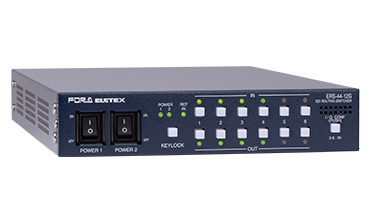

ERS-44-12G

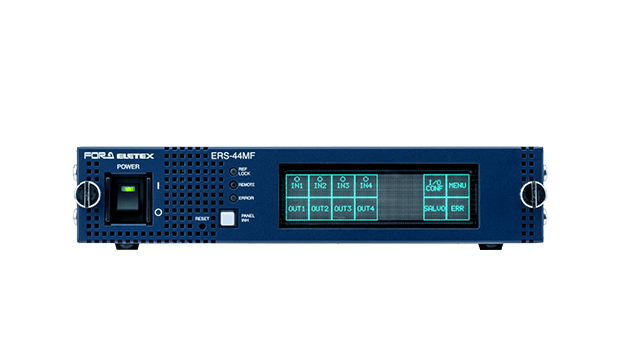

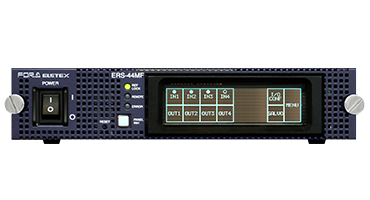

ERS-44MF
- Supports 12G/6G/3G/HD/SD-SDI and DVB-ASI. Input/Output can be changed to 2×6, 3×5, 4×4, 5×3 or 6×2.
- Redundant Power supply.*1
- AVDL function*2and simplified multi viewer function*2.
- Front touch panel is removable and can be used as a remote controller.
Features
Multi-bit rate inputs and outputs
12G*/6G*/3G/HD/SD-SDI bit rates and DVB-ASI signals are supported by each input and output. Auto input detection eliminates the need to know the supplied signal rates. * Only ERS-44-12G and ERS-44MF support 12G/6G-SDI.
Auto cable equalization and SDI reclocking
Auto determination of source signals
Routing setting
Set up routing on the front panel or remotely via serial commands (RS-232C or LAN) or SNMP (LAN).
Router monitoring
- Router monitoring with SNMP or serial commands
- GPIO control
SNMP trap output
Monitoring and detection of power, I/O carriers, reference input, and switching of output or blanking formats and reporting to up to four IP addresses
Communication interface
Communication interface can be configured via telnet (RS-232C, LAN, SNMP).
Redundant power supply*
Redundant power supply prevents failure of one power supply from affecting operation.
* Standard on ERS-44HSA and ERS-44-12G, optional on ERS-44MF.
