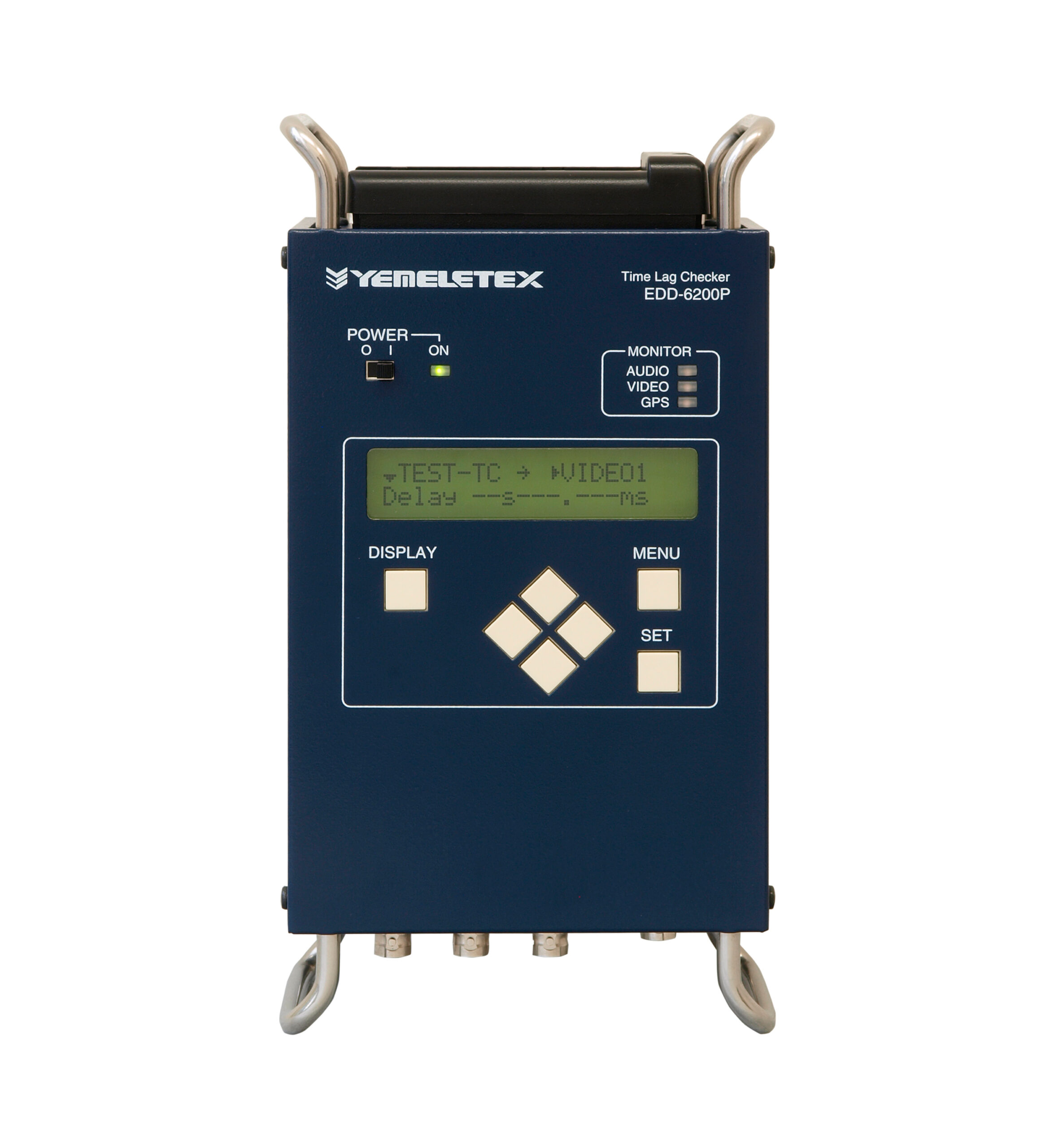

EDD-6200P

This equipment can measure the video delay time, audio delay time, difference between audio channels and difference between video and audio by using test time code (hereafter called TTC) signals.

• Generates TTC signals whose phases are the same as those of video, audio or VANC signals and outputs them as video, audio or VANC.
• Measures video and audio delay time by routing video and audio signals back to the Time Lag Checker through the desired devices and lines, and by comparing the time from output to input (return). Also measures video and audio delay time of devices or lines by comparing phases of TTC signals that are routed back to the checker.
• Estimates delay time in long distance with GPS by using two Time Lag Checkers.
• 3G-SDI, HD-SDI and SD-SDI Supported
• Long Distance Delay Measurements
• Various Measurement Modes
• High Accuracy Measurements
• Difference Measurements between Video and VANC
• Built-in High Precision Clock(synchronized by GPS)
