Universal System Frame

USF-105S/212/212S

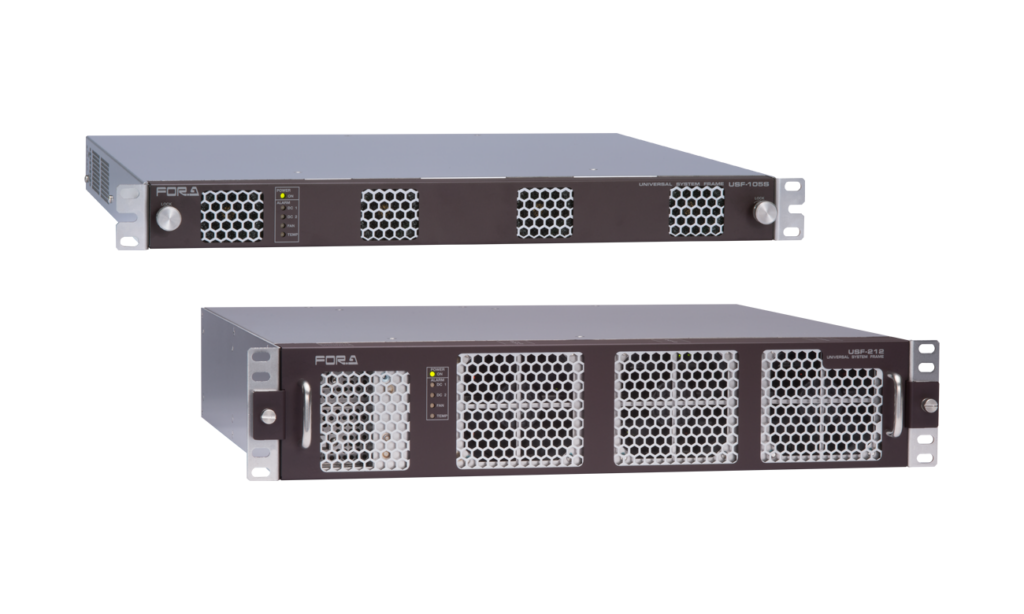

Universal modular frame designed for compact (2U), economical system building. Holds up to 12 modules.
Add USF-212PS for a redundant power supply.

  • Ample 700 W power supply
  • Hot-swappable, front-accessible power unit and module bays
  • New design combining video and IP
  • Two genlock inputs (Black burst (BB) or tri-level sync)
  • Optional gigabit Ethernet hub card for fast module-computer communication
  USF-212 USF-212S
SNMP support No Yes
Ethernet hub card No Yes

Add features through optional cards

Front view (when the front panel is removed)

Modules

USF-1043FS

3G/HD/SD-SDI frame/line synchronizer

  • Splits a 3G/HD/SD-SDI source selected from 2 inputs, for distributed output to 4 ports
  • FS mode: Adjusts phases and syncs asynchronous SDI signals to genlock signals
  • Automatic muting for detected audio errors
  • 16-channel audio sample rate converter (SRC)
  • Audio delay adjustment for each channel (up to 1000 ms), audio channel remapping
  • Audio downmixing for linear PCM
  • Seamless switching between audio or video input
  • H/V ancillary data passthrough (source-synchronous input only)
  • Processing amplifier, video clip, video delay, and freeze functions
  • 16-channel embedded audio support (asynchronous audio for 3G/HD-SDI)

USF-1053DDA

5-output multi-bit rate digital video distributor

  • 3G/HD/SD-SDI equalization and reclocking
  • SDI 3.0 Gbps, 1.5 Gbps, or 270 Mbps signals
  • DVB-ASI (270 Mbps) also supported

USF-1040VEA

4-output analog video distributor

  • Black burst (BB) system sync signal or tri-level sync analog video signal cable equalization
  • Passthrough input supported
  • Browser-based control and SNMP monitoring

USF-1100VEA

10-output analog video distributor

  • Black burst (BB) system sync signal or tri-level sync analog video signal cable equalization
  • Passthrough input supported
  • Browser-based control and SNMP monitoring

USF-1013MUX

3G/HD/SD-SDI digital audio multiplexer

  • Multiplexes 4 pairs (8 channels) of AES/EBU signals onto SDI signals
  • 3G/HD/SD-SDI input and output x1
  • Gain adjustment for audio input/output
  • Timecode (LTC) input (AES7/8 switching)
  • Sample rate converter for AES/EBU input

USF-1013DEMUX

3G/HD/SD-SDI digital audio demultiplexer

  • De-multiplexes audio from SDI signals into AES/EBU audio output
  • 3G/HD/SD-SDI input and output x1
  • Gain adjustment for audio input/output
  • Timecode (LTC) output (AES7/8 switching)

USF-108ADA

8-output analog audio distributor

  • Can also be configured for 2 inputs/4 outputs
  • Browser-based control and SNMP monitoring

USF-1044UDC

4K Up/Down converter

  • Up/Down conversion (4K ↔ HD, 4K ↔ SD)
  • Conversion between 4K signals (SQD ↔ 2SI, BT.709 ↔ BT.2020)
  • Consumes 2 USF module bays
