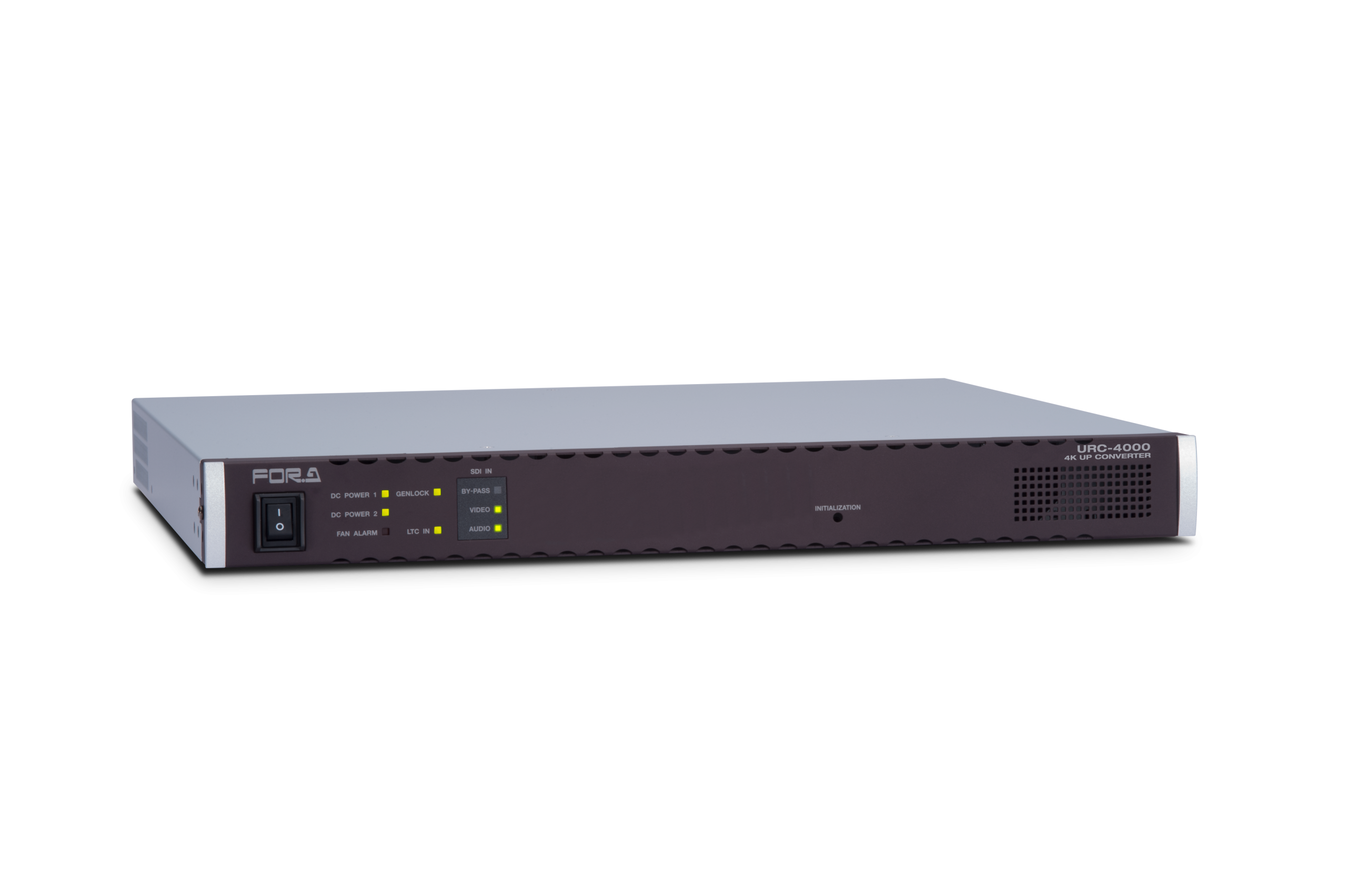

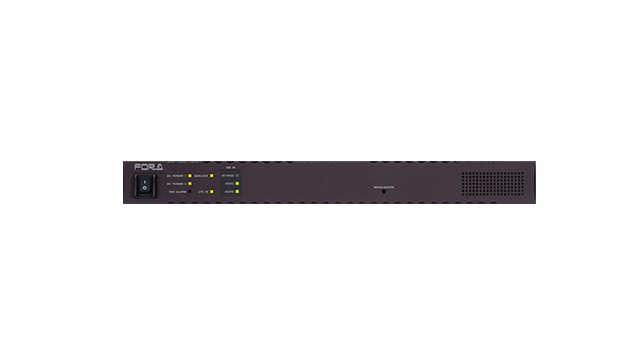

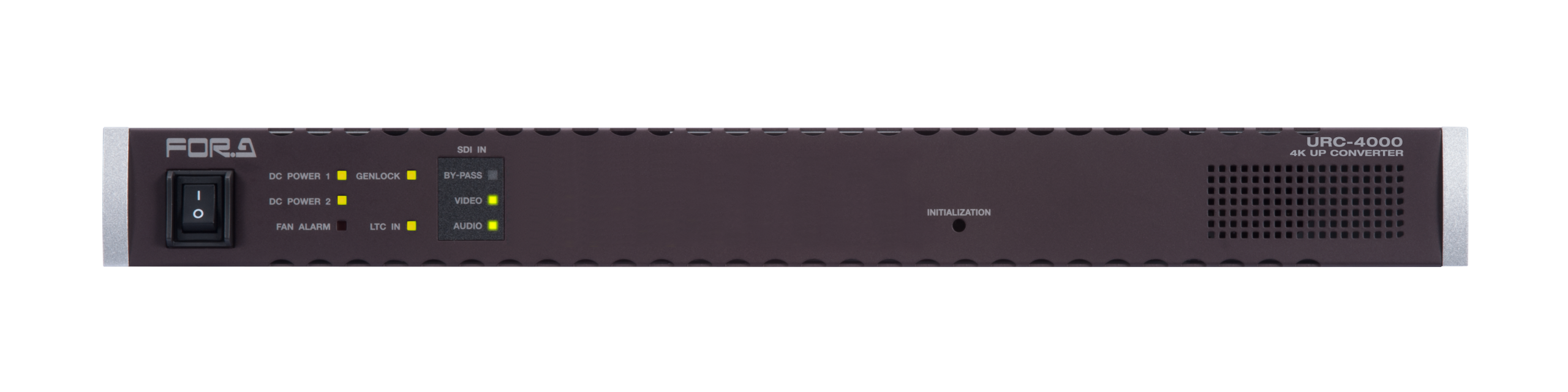

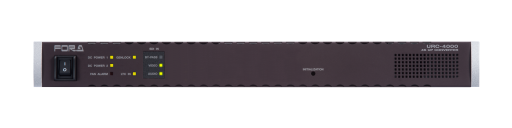

4K Up Converter

URC-4000

Welcome to new horizons in 4K

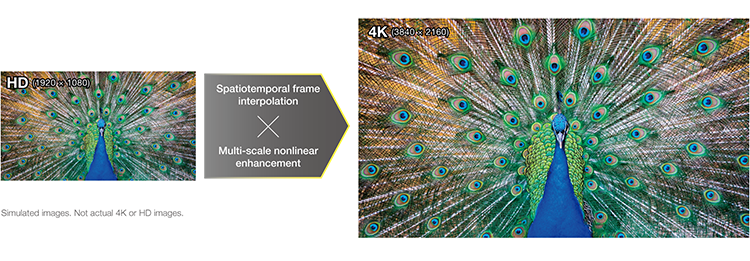

The URC-4000 provides powerful up-conversion and turns HD video into 4K in real time. Original I/P and resolution conversion developed by FOR-A, unleashes a new era in 4K conversion. Spatiotemporal frame interpolation is performed in which spatial and temporal changes in images are detected in high precision, on a pixel-by-pixel basis. Aliasing from conversion are reduced, and the resolution of still image areas is restored. Resolution is further improved through multi-scale nonlinear enhancement. An optional redundant power supply is also available, and firmware can be updated remotely over the Internet. Explore new territory in 4K.

New approach to I/P and resolution conversion

Multi-format support

The URC-4000 supports multiple input signals, including 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i and output signals, including 3840 x 2160/59.94p (1080/59.94p x 4*)、3840 x 2160/50p (1080/50p x 4*).

  • SQD (Square Division)

Optional redundant power supply

An optional redundant power supply can be added for critical live application.

3G-SDI Level A/B compatible

Output of 3G-SDI Level A or B is supported.

Web Control

A built in web server provided GUI base control over LAN.

SNMP (Simple Network Management Protocol)

SNMP control and monitoring is supported (optional)
