TS Changeover Switch

UFM-80TSCS

Shockless
Increasing TS circuit reliability

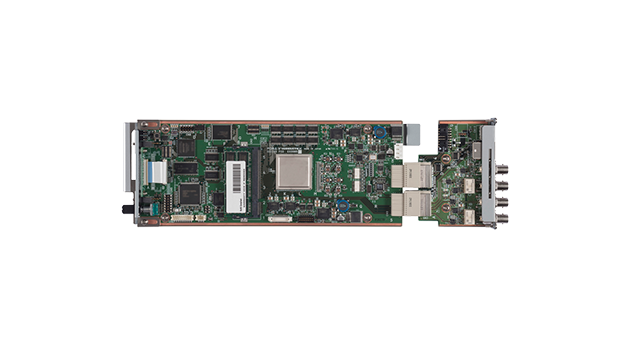

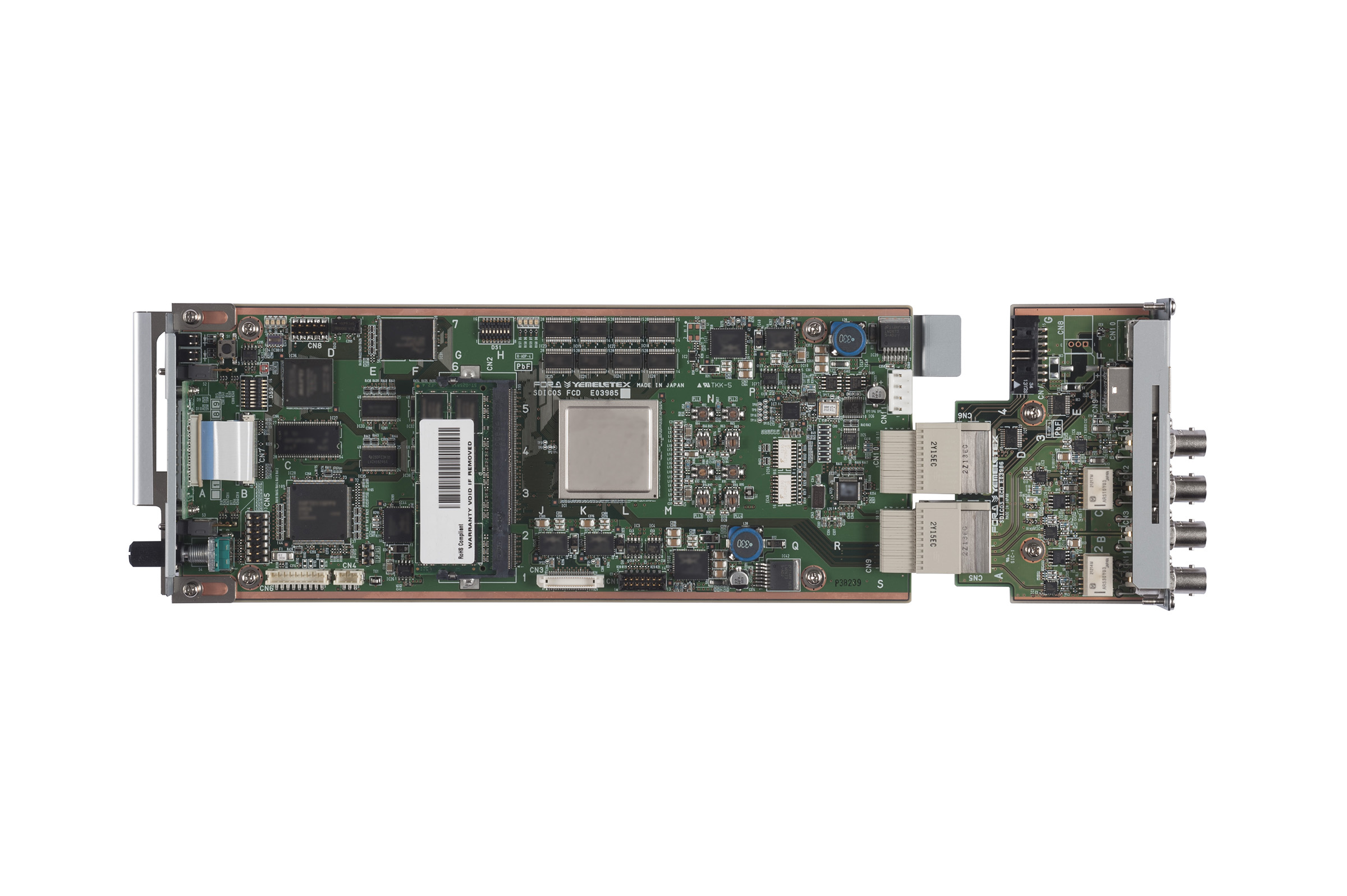

This modular type TS changeover switcher that can be mounted in a UFM frame constantly monitors TS signals on a redundant circuit, and switches the output swiftly to the other line when an error occurs without disrupting output to achieve automatic seamless switching.

This TS automatic seamless switcher constantly monitors two TS signals output from the same encoder on a redundant circuit for errors, and switches the output seamlessly to the other line when an error occurs. To prevent an error on the transmission path, this switcher further increases the reliability of duplex transmission.

Mounting multiple switchers into a single unit greatly reduces the installation space.

Downsizing can be achieved by equipping multiple modules to a single UFM frame. Up to five modules can be equipped to the UF-106B, and up to nine modules to the UF-112. In addition, different module types can also be simultaneously equipped.

  • Seamless switching function between the outputs of the same encoder
  • Auto and manual switching
  • Delay adjustment function
  • GUI
  • Error detection
  • Bypass-through function
  • External control functions

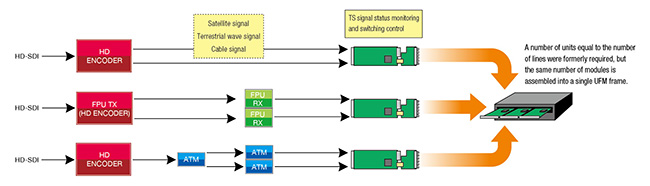

System Configuration Examples
