BTO

Low-Light Noise Reducer

UFM-30NR

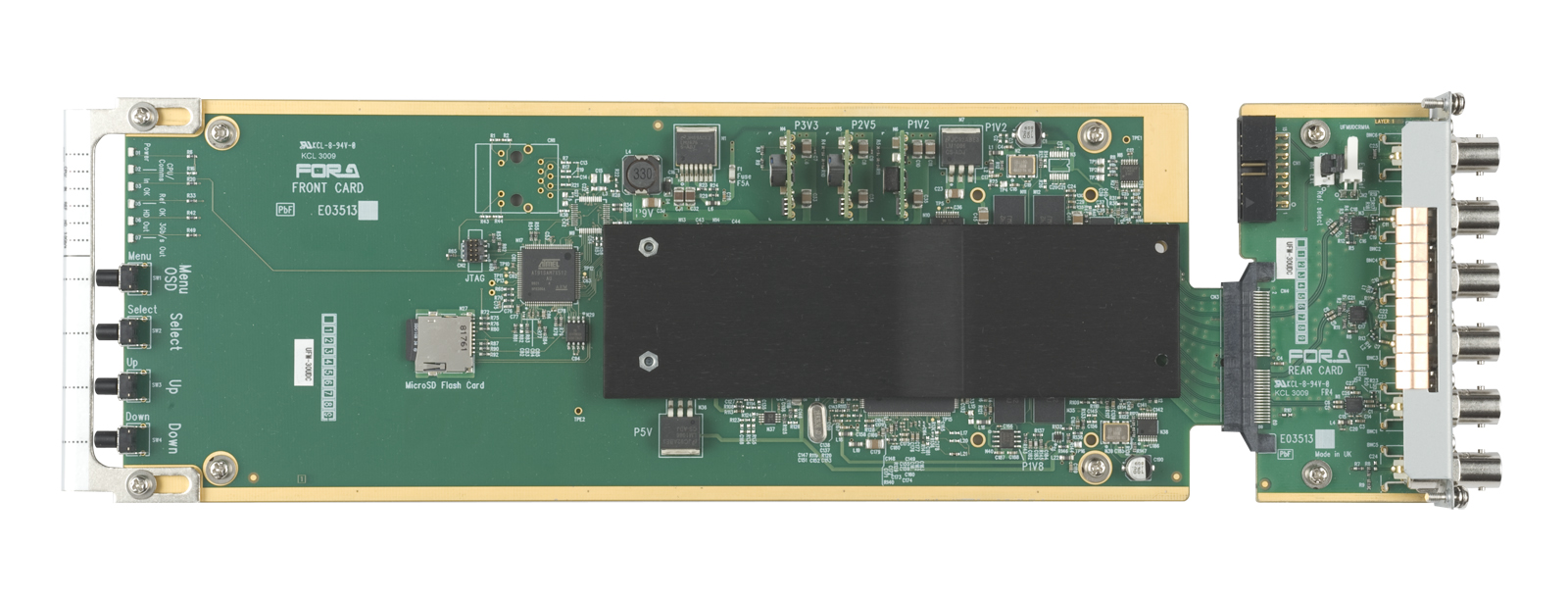

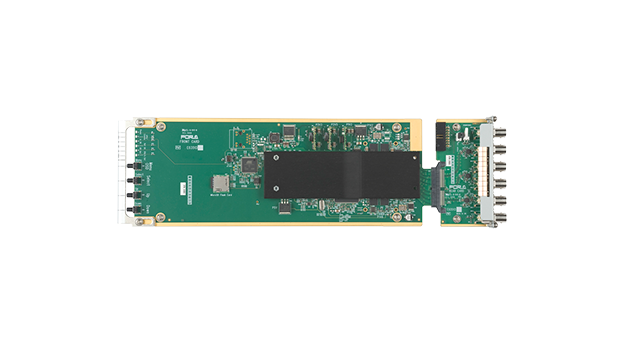

The UFM-30NR is a modular, multi-format noise reducer designed to fit into UFM frames. The UFM-30NR can remove noise from video captured in low-light environments, making it ideal for removing dark noise from weather information camera signals as well as for security applications.

Features

  • Removes low-light noise included in video taken by monitoring cameras or night-vision cameras which is used as a monitoring purpose.
  • Supports HD-SDI/SD-SDI/analog composite input, and HD-SDI/SD-SDI output.
  • On-screen Display (OSD) installed: Allows menu display on analog composite monitor output screens
  • Supports 8 channels of embedded audio
  • Noise removal menu items
    Y recursive: 0 (OFF) to 7 (MAX): Strength of temporal noise reduction (brightness)
    C recursive: 0 (OFF) to 7 (MAX): Strength of temporal noise reduction (color difference)
    Recursive threshold: 1 (MIN) to 7, Fixed, Auto: Threshold value of timed noise reduction
    Y spatial: 0 (OFF) to 7 (MAX): Strength of spatial noise reduction
    Spatial threshold: 1 (MIN) to 7, Fixed, Auto: Threshold value of spatial noise reduction
    Split screen: ON/OFF: Left/right separation of processing results

UFM-30NR Sample Movie
