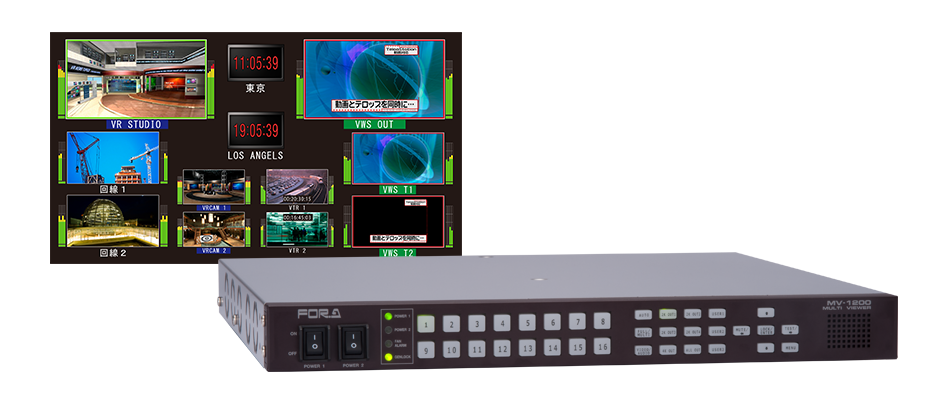

Multi Viewer

MV-1200/1210

Compact (1U) multi viewer for monitoring, featuring up to 16 inputs and 6 outputs. Build a versatile, flexible 4K (UHD) editing environment.

Features

Two models available

MV-1200: HDMI 4 inputs/1 output
MV-1210: SDI 4 inputs/1 output
Use of MV-12EXP option allows both SDI/HDMI input and output.

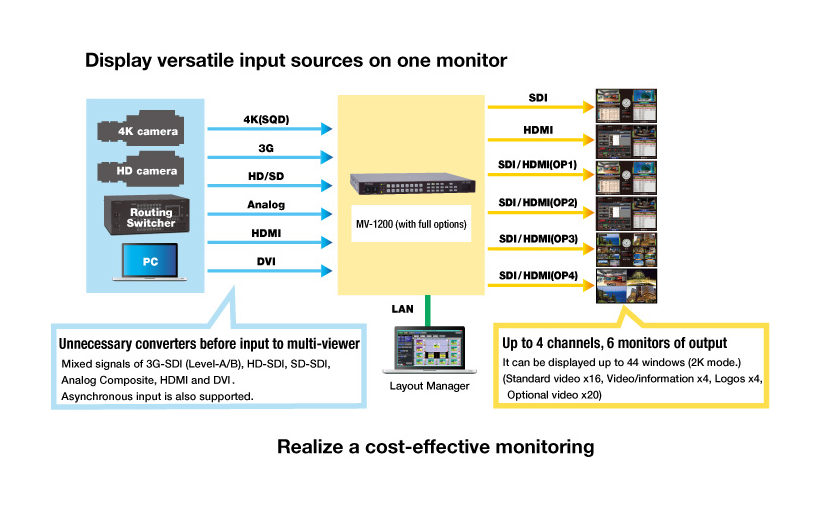

Versatile Mixed-Source Environment

Supports mixed signals including: 3G-SDI (Level-A/B), HD-SDI, SD-SDI, Composite, HDMI, or DVI sources. Asynchronous input is also supported. The multi viewer accepts an array of formats and frame rates including NTSC, PAL, 1080/59.94i, 1080/50i, and 30/29.97/25/24/23.98p or PsF. (No frame rate conversion)

Up to 16 input channels with optional cards (SDI and HDMI inputs total)

Combine optional input cards, MV-12SDI (3G/HD/SD-SDI, Composite x 4), MV-12PCI (DVI/HDMI x 4), or the MV-12IF interface card (GPIO, serial control, LTC input, genlock), as needed.

A variety of optional cards to expand your network connectivity

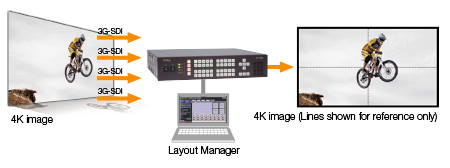

3G-SDI inputs support 4K (UHD) source input

Layout Manager enables easy layout of 4K video in a seamless display

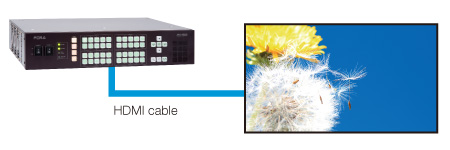

HDMI 2.0b output, using MV-12PCO

4K UHD output via one HDMI cable (3840 x 2160、YUV 4:2:0)

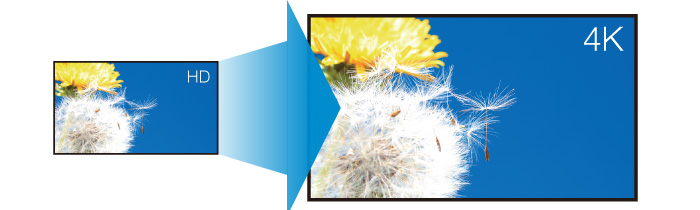

HD to 4K up-resizing, using MV-12PCO and MV-12SDO

Logo display in title areas

Import a bitmap from the logo registration screen, or generate and register a logo using a web browser.

Layout Manager

Customize layouts, using the software in Windows to adjust image size, position, title display, and other settings. Up to 16 preset patterns each for 4K/2K modes can be stored. Recall saved layouts directly from the front panel control.

Other Features

  • Video can be streamed from the multi viewer over Ethernet.
  • Capture specied frames of streamed video.
  • Audio Level Display for up to 16 channels
  • Audio Monitoring Output
  • Flashing borders or error icons/messages to identify screens with errors
  • Tally, Title, and Timecode
  • Time of day, Timer, and Information Display
  • View error logs or user text in the Information Display.
  • Logo/Background
  • Input Lock enables genlock without using reference signals.
  • Can display time based on a 30-hour clock.
  • Register up to 24 schedule timers per day for 1 week.
  • Cropping
  • Detects frozen frames. (Y/C and Y only)
