LTO Video Archiving Recorder

LTR-200HS6

Re-defining Media Archive Workflows

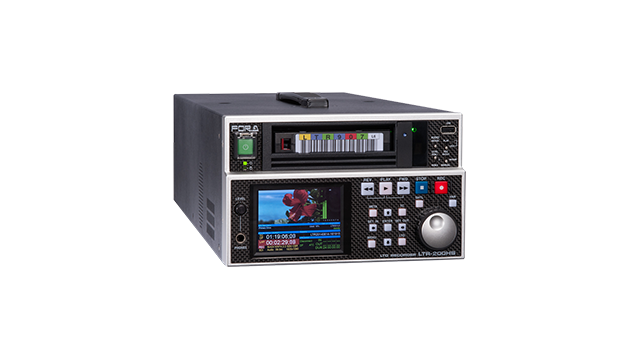

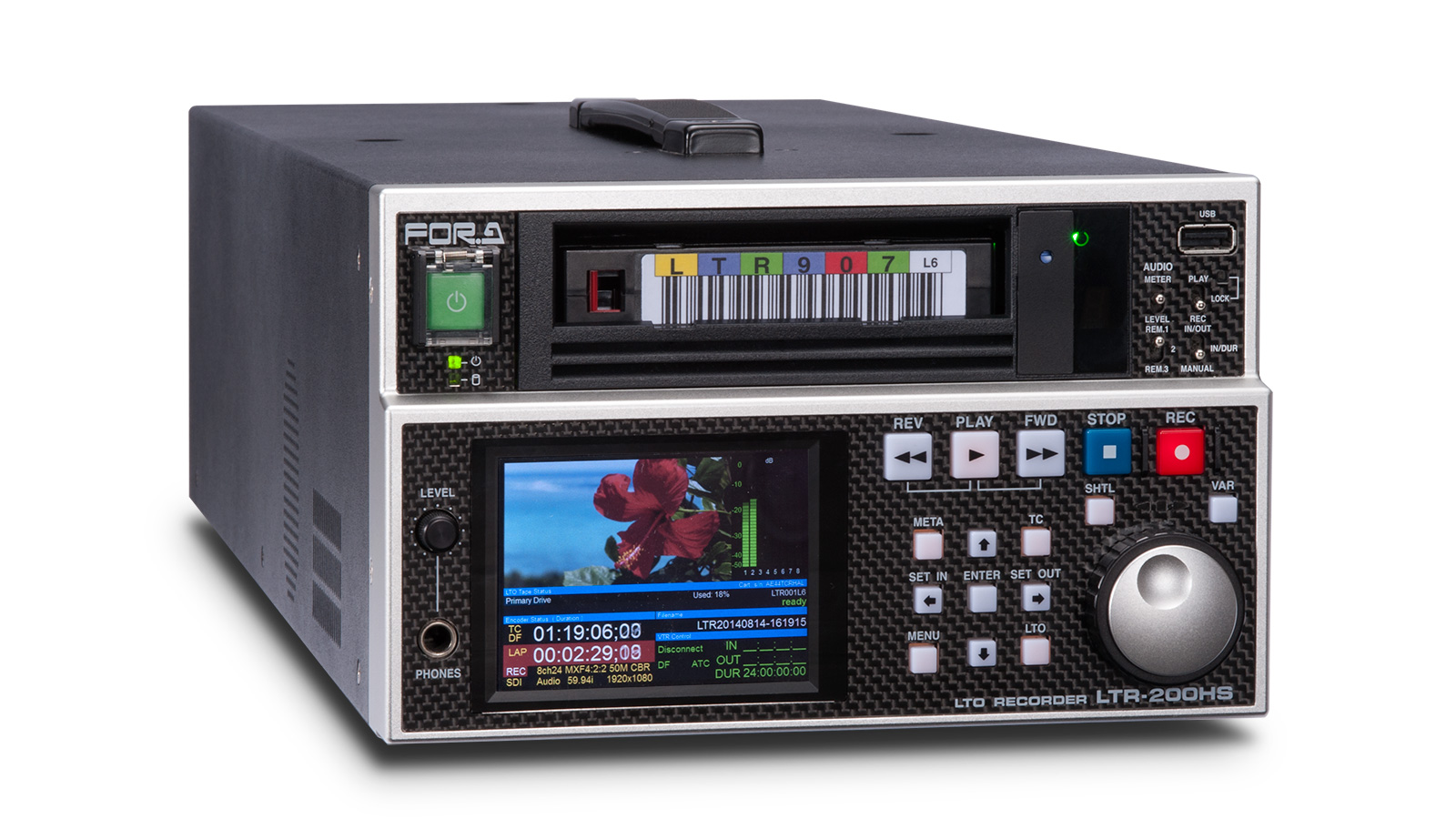

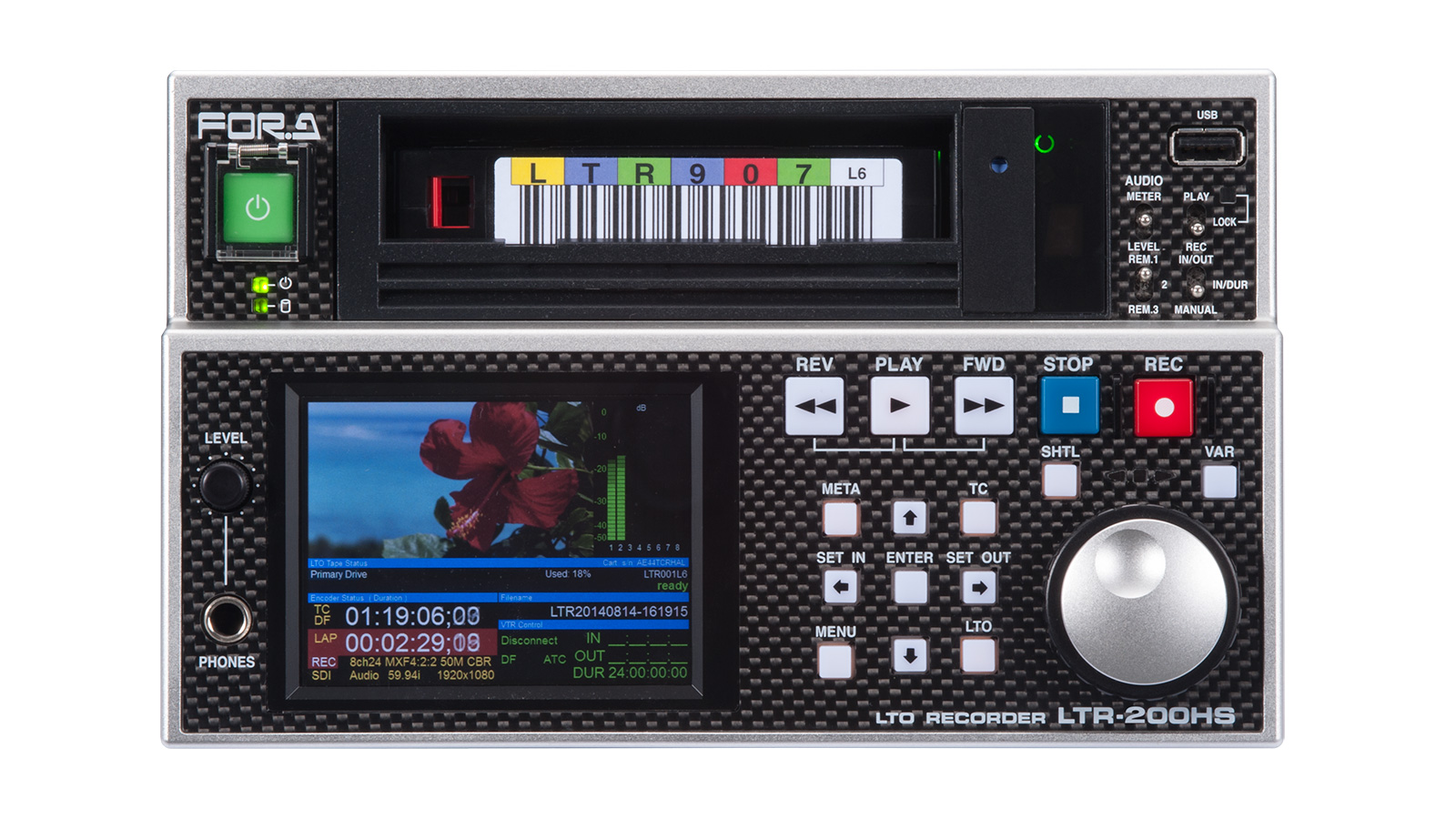

The LTR-200HS6 stand-alone video archiving recorder comes equipped with an LTO (Linear Tape Open)-6 drive and supports a wide range of file codecs. The massive Terabyte and LTFS file system recording capability of the unit allow it to be used as a material or program exchange platform. The LTR-200HS6 offers many useful features, including HD/SD-SDI input/output, broadcast quality codec, and MXF (OP-1a) wrapping and unwrapping. MXF files that are recorded on LTO can also be used with non-linear editing systems. Simply connect VTRs to the LTR-200HS6 to convert HD/SD-SDI signals to MXF files. The LTR-200HS6 offers the best solution for repurposing past baseband data in filebase systems.

Supported video codecs and formats

The unit supports AVC-Intra 100 Mbps, Avid DNxHD® 220 Mbps 10-bit compression, and Apple ProRes and allows you to archive your programs at higher quality.

Codec HD/SD File Note
MPEG-2 HD 18/25/35/50 HD MXF OP1a SMPTE RDD-9
AVC-Intra 50/100 HD MXF OP1a
DVCPROHD 100 HD MXF OP1a
Avid DNxHD® 145/220/220x HD MXF OP1a
Apple ProRes HD QuickTime/MOV Option
