Data Router / digiStorm Controller

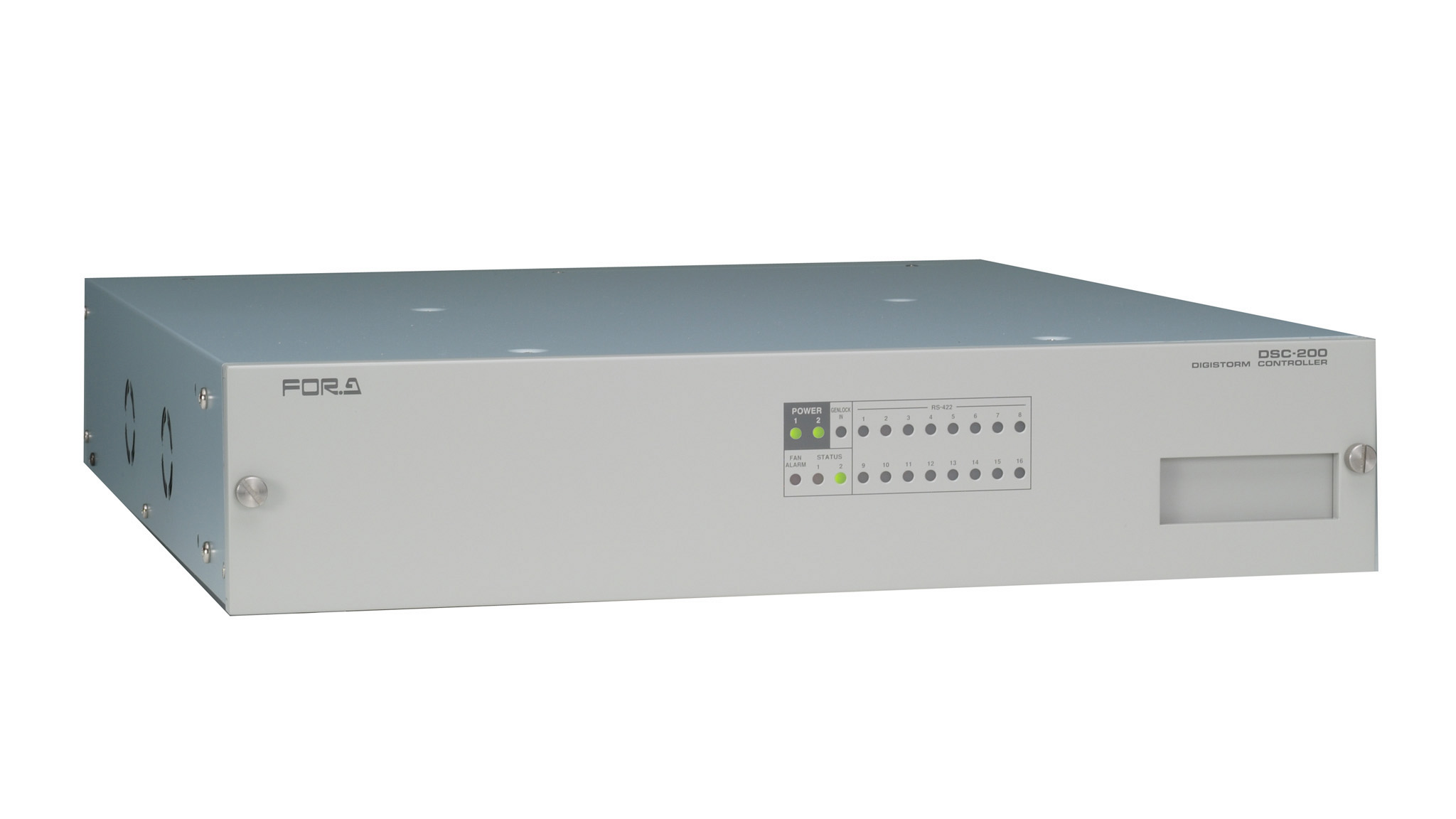

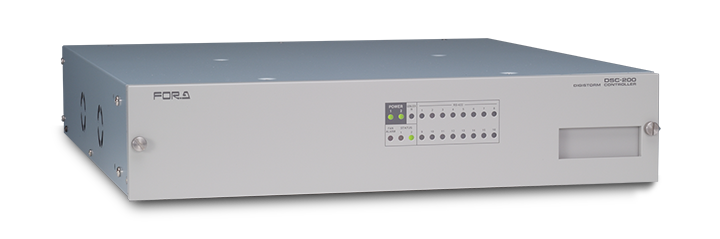

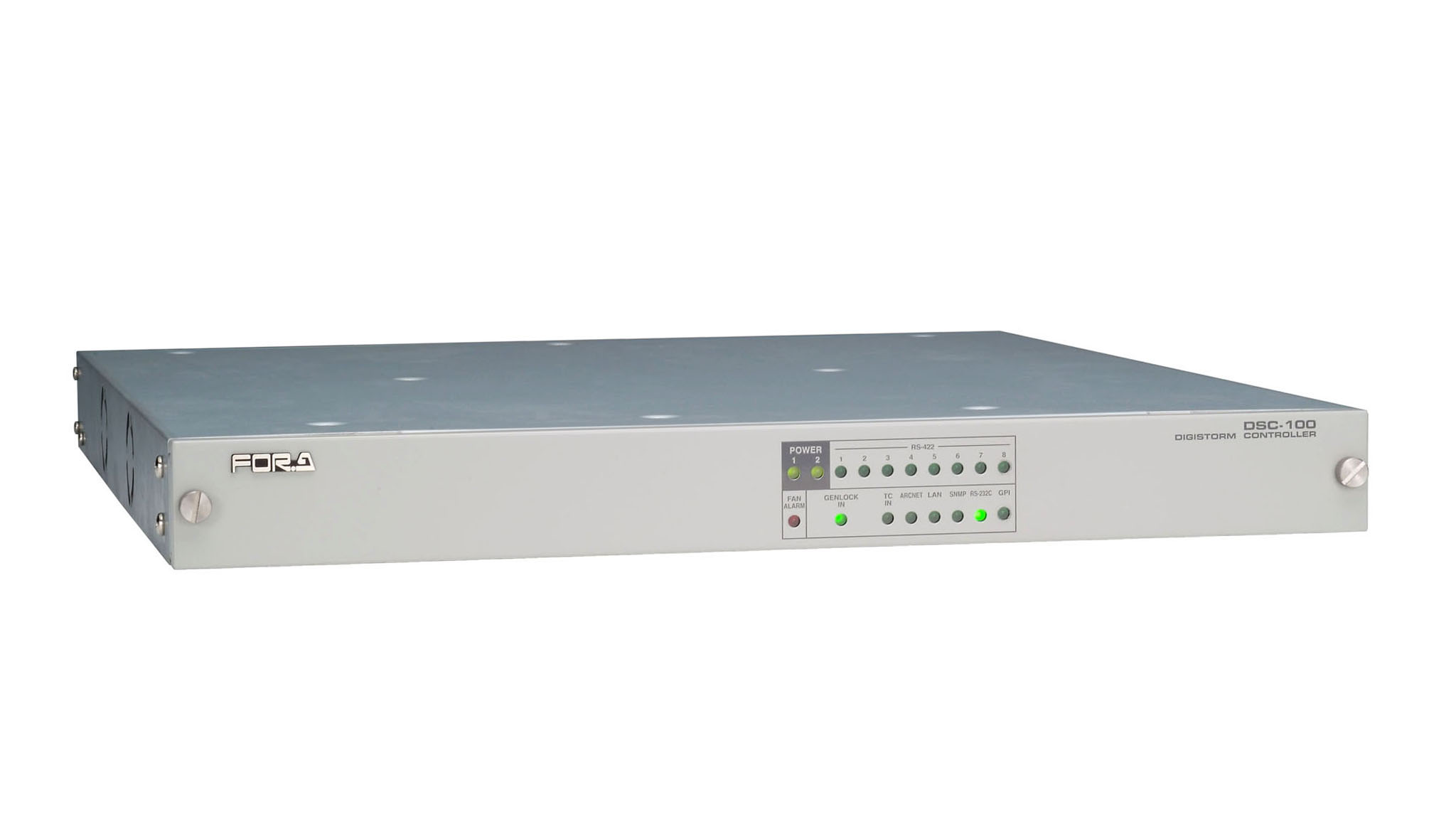

DSC-100/200

The DSC-100/200 is a device for switching camera parameters in FOR-A's virtual studio and RCG system. Normally, one CG processor is required for each camera for compositing with CG images. The DSC-100, however, enables switching of the input camera parameters for effectively using the CG processor.

Features

  • Supports building of multi-camera sensor systems: The camera parameters needed for CG compositing are changed at the stage before the CG processor for effectively using the CG processor when operating a multiple-camera virtual studio system and for eliminating the need for a CG processor for each camera
  • Two available lines for camera parameter output setting: Separate camera settings can be made for each line for building an on-air/next system when two CG processors are used
  • 8-port (DSC-100)/16-port (DSC-200) RS-422 interface: This collects the various data needed for the virtual studio, including the camera sensors, for eliminating complicated data handling processes
  • Enables linked operation with the Digital Video Switcher HANABI series: The DSC-100/200 operates in tandem with the switching settings of the video switcher for providing seamless compositing of the appropriate CG image on the camera video
  • Easy-to-operate, intuitive GUI: Settings can be easily made on a PC.
  • Built-in redundant power supply
